UHV Stage VSM17-G

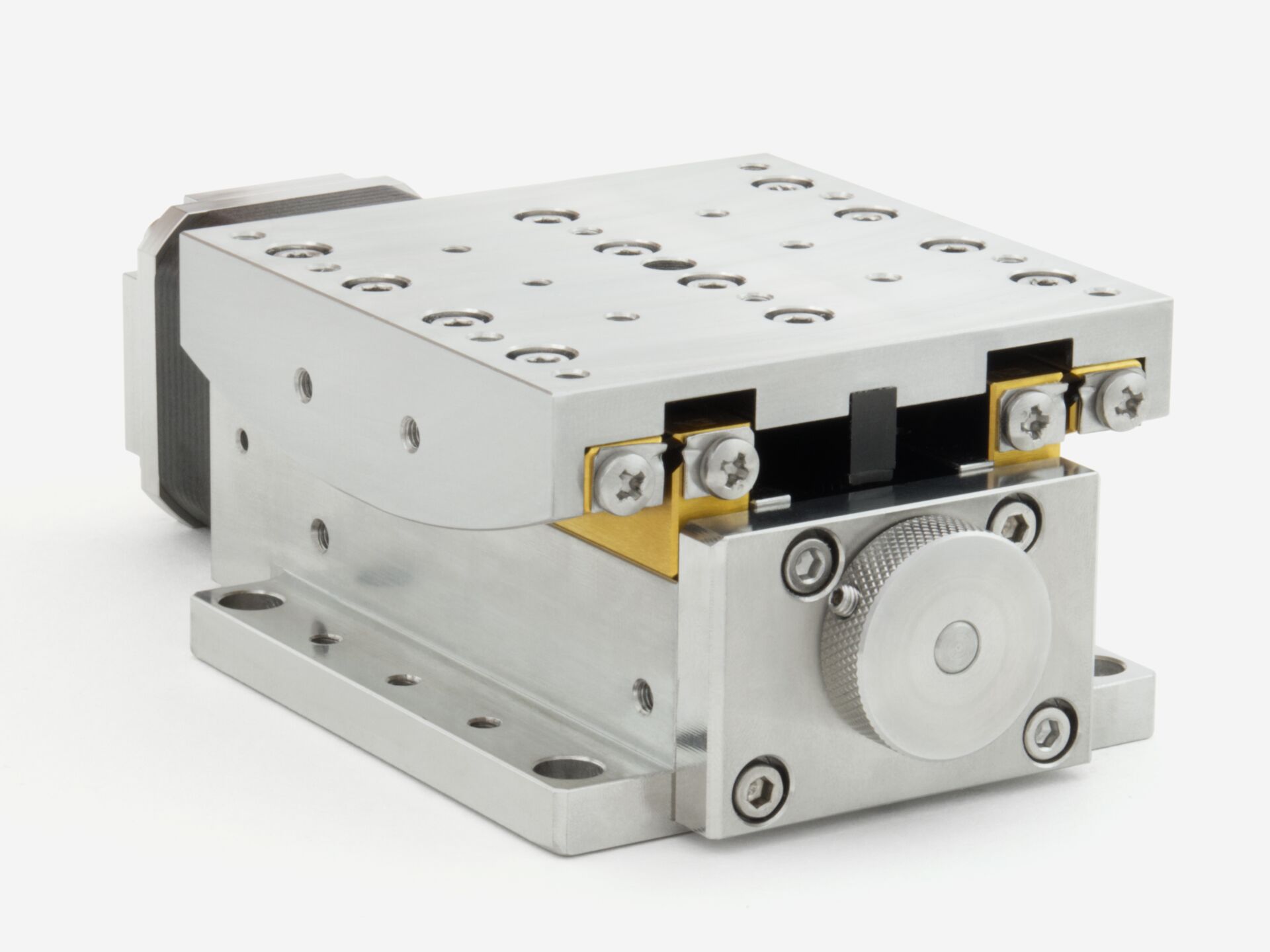

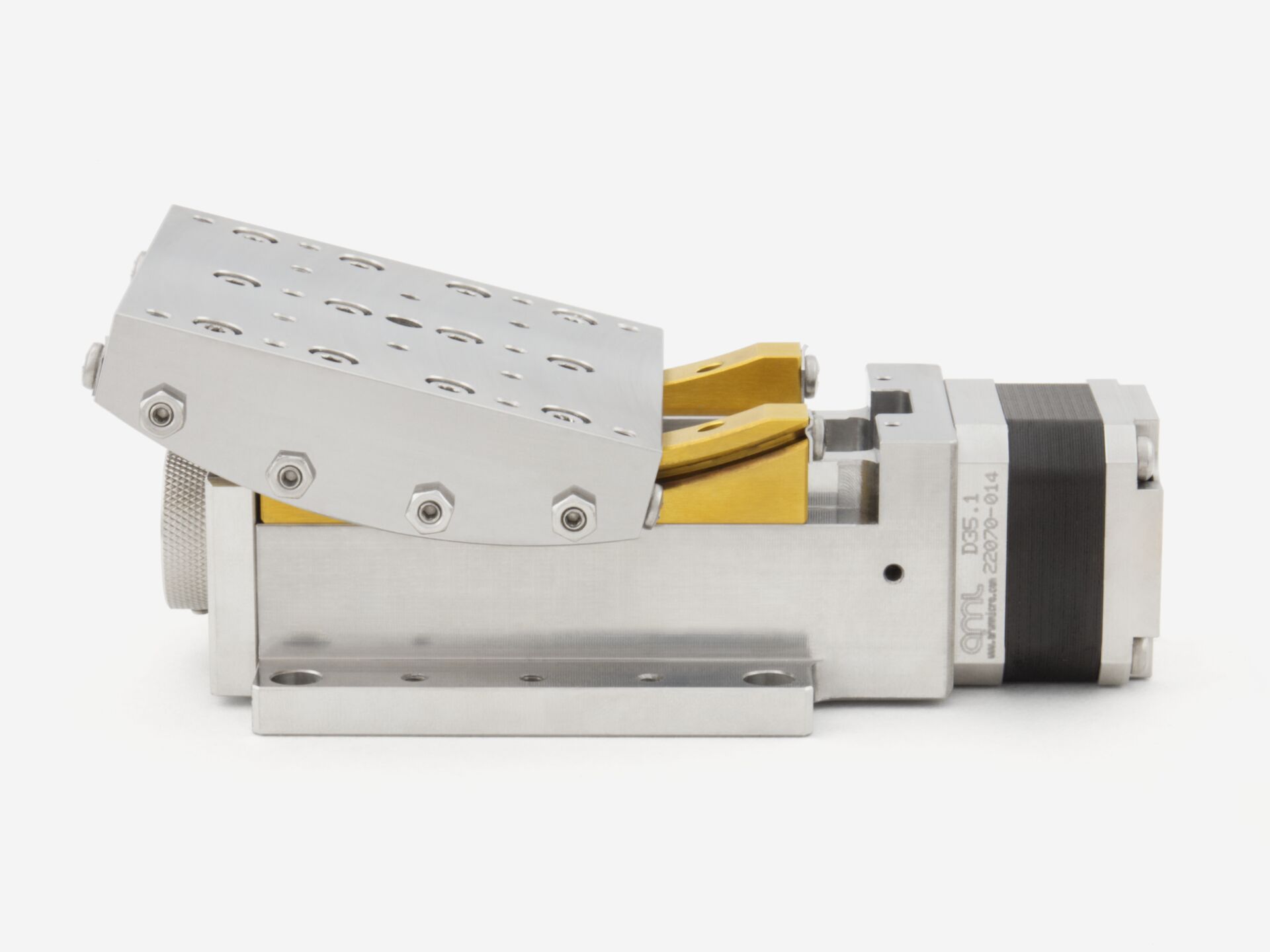

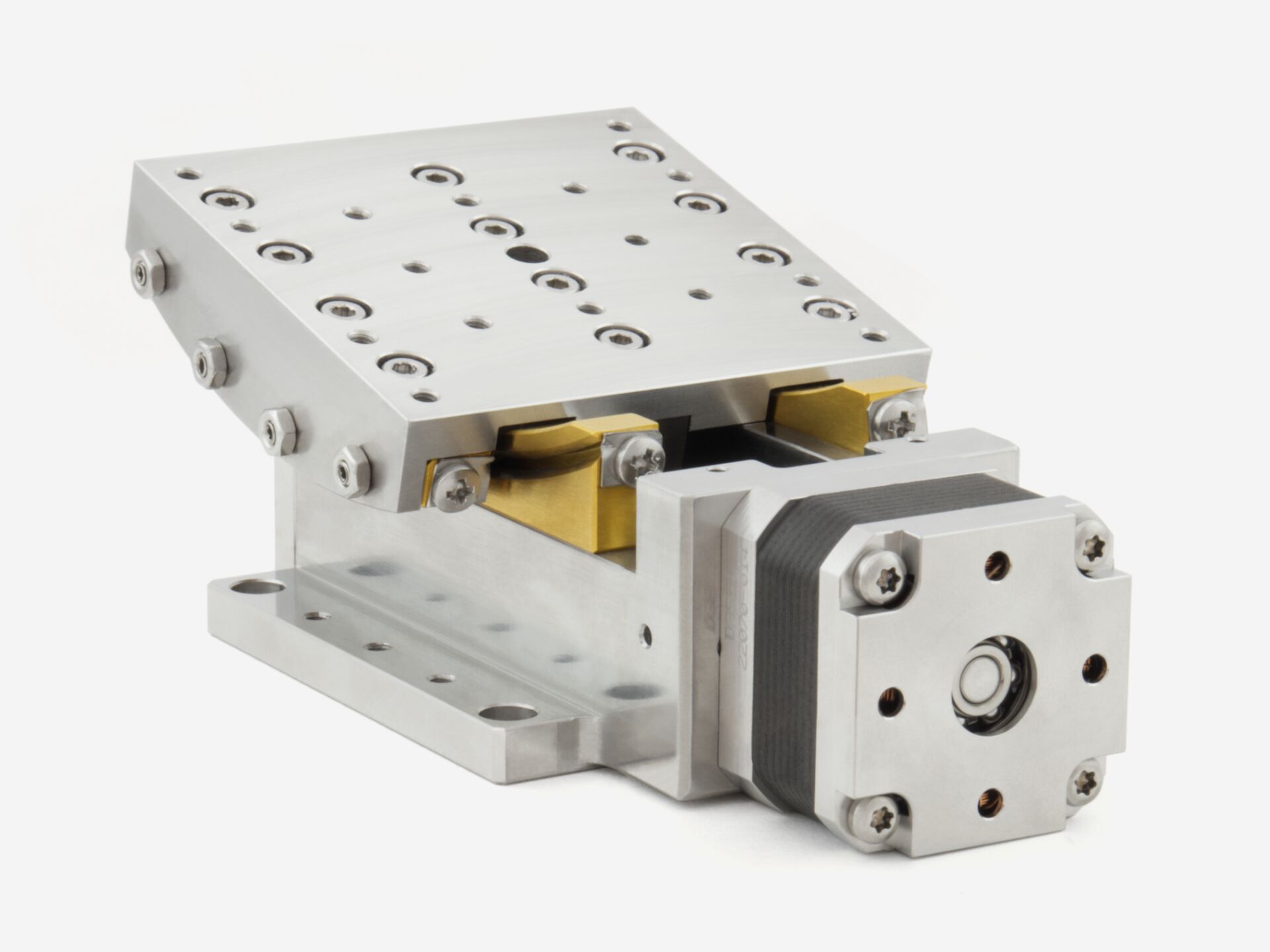

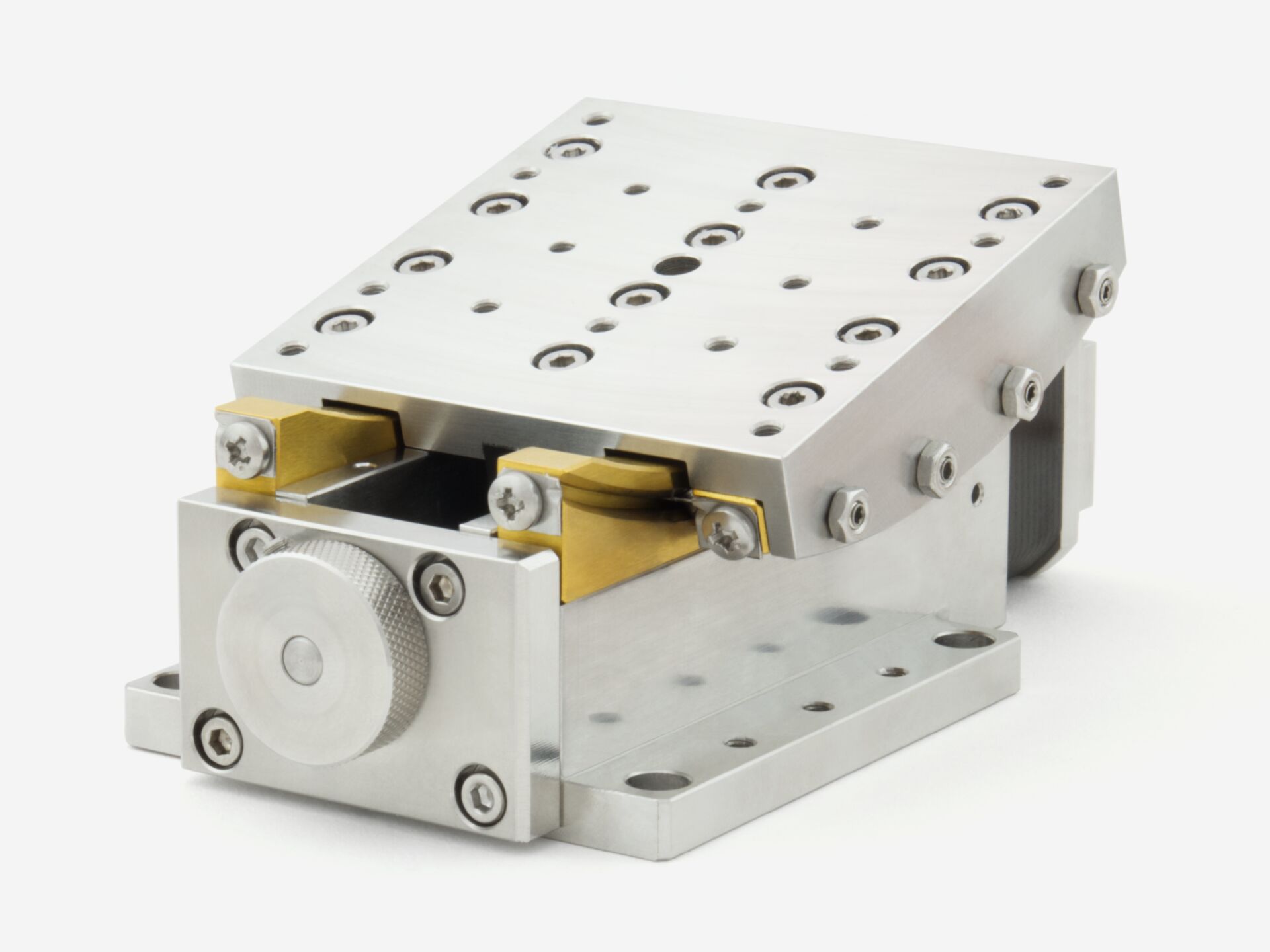

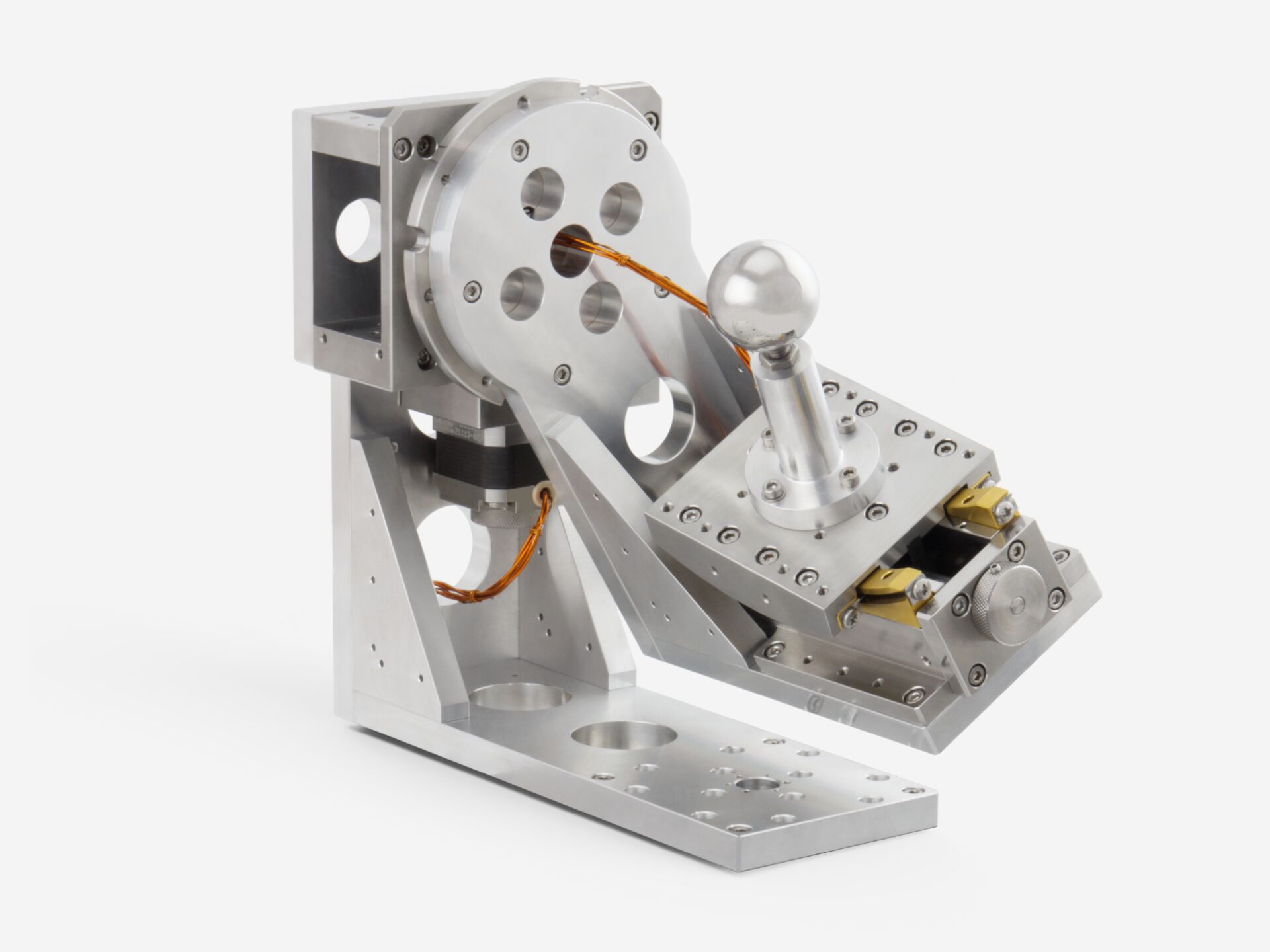

AML ultra high vacuum compatible goniometer stage with up to ±180° travel, provides rotation on a transverse axis above the table. Can be used standalone or as part of a complex motion system when combined with other VSM17 modular stages. It is possible to build a Euler goniometer with a common center of rotation when VSM17-G-070 and VSM17-G-114 stages are combined. The VSM17-G features rigid construction to allow for high load capacity while maintaining smooth motion through the full range of travel. Manufactured with UHV-compatible material and construction methods and utilize AML UHV stepper motors.

View Datasheet



Buyers’ Guide
Contact Ian

Features

UHV Compatible
Suitable for use below 1 x 10-10 mBar (7.5 x 10-11 Torr) and bakeable to 200 °C (120 °C when optical encoder is fitted)

Rotation range
Full 360 °

Resolution and Repeatability
Resolution of 0.1 ° or 0.005 °
Better than resolution unidirectional repeatability

Speed and Torque
Maximum loaded speed up to 100 rpm
Maximum torque of 8 Nm

Compatibility
Directly stackable for XYZ orientations. Compatible with all VSM17 and VSM23 modular stages

Customizable
Can be fitted with limit switches or optical encoder. Please call our engineers to discuss the feasibility of your specific, custom needs

Options available
High-resolution, radiation resistant versions available. Lubricated with NyeTorr® 6300 grease



Specifications

MODELS DESCRIPTION
VSM17-G-070 0.005° Resolution, ±15° Travel.
Rotational Center 70mm

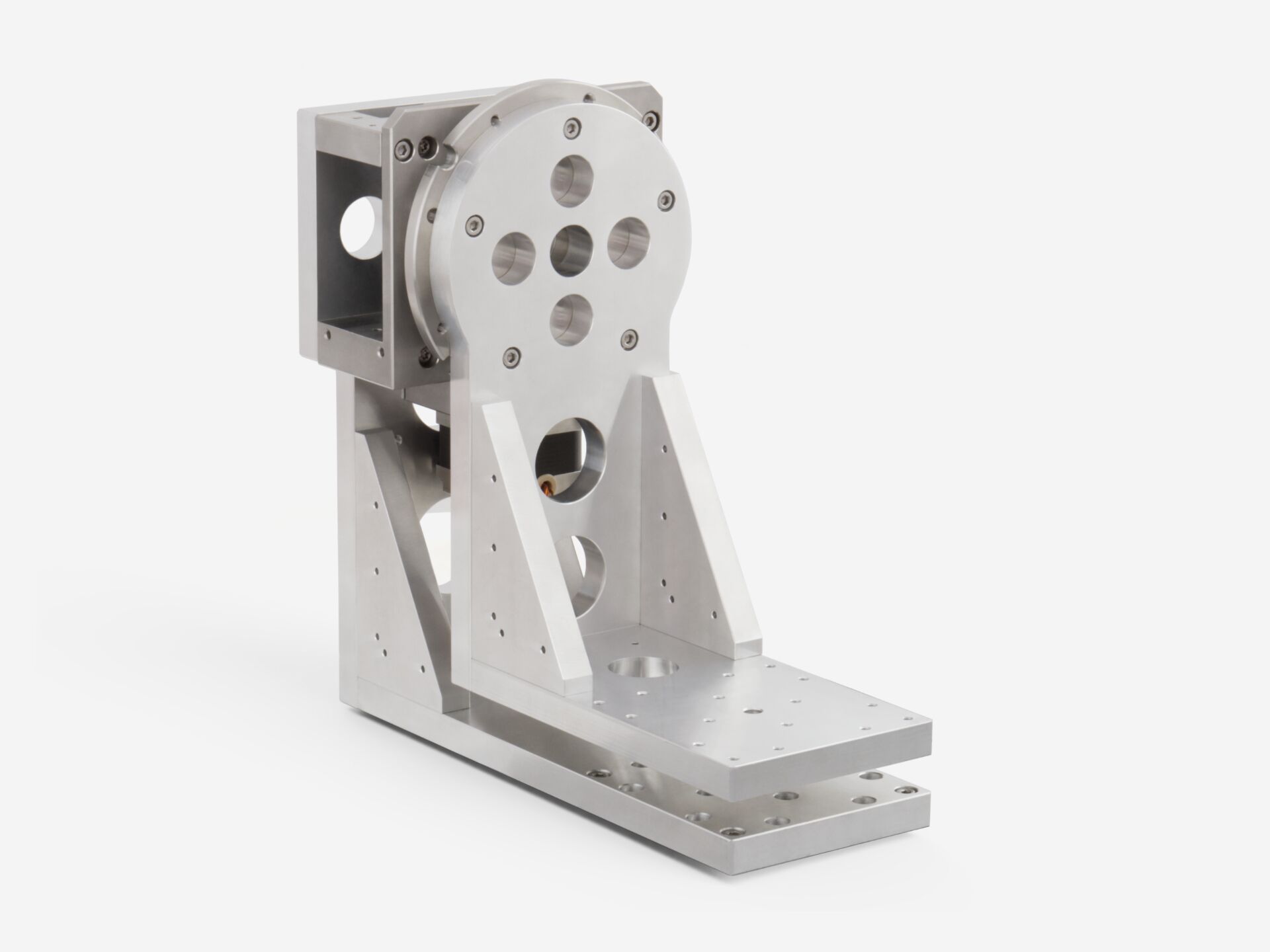

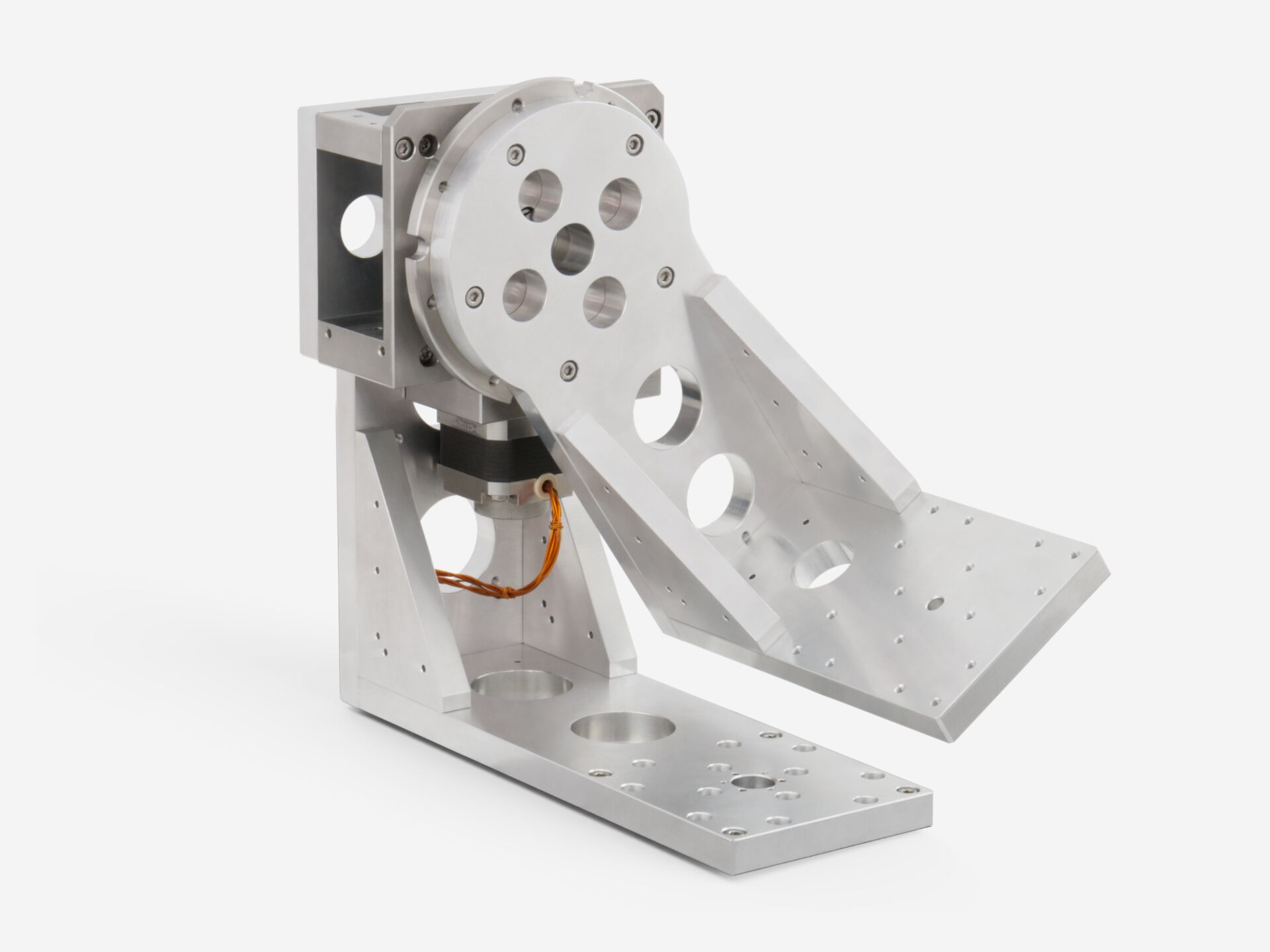

VSM17-G-114 0.005° Resolution, ±180° Travel.
Rotational Center 114mm
