UHV RSB Rotation Stages

AML ultra high vacuum compatible rotation stages are intended for intermittent rotation of balanced loads or as a precision gearbox. They are manufactured with UHV compatible material and construction methods and utilize AML D35.1 UHV stepper motors. The RSB10K/20K/30K can be mounted directly on AML LTV translation stages or stacked on another RSB without additional hardware.

View Datasheet



Buyers’ Guide
Contact Ian

Features

UHV Compatible

Resolutions from 0.036° to 0.004° per step

Unloaded backlash is less than resolution

Intended for intermittent rotation of balanced loads of up to 1 kg

RSB10K/20K/30K can stack on AML translation stages

Suitable for use below 1 x 10-10 mBar

Bakeable to 200°C



Specifications

MODELS DESCRIPTION

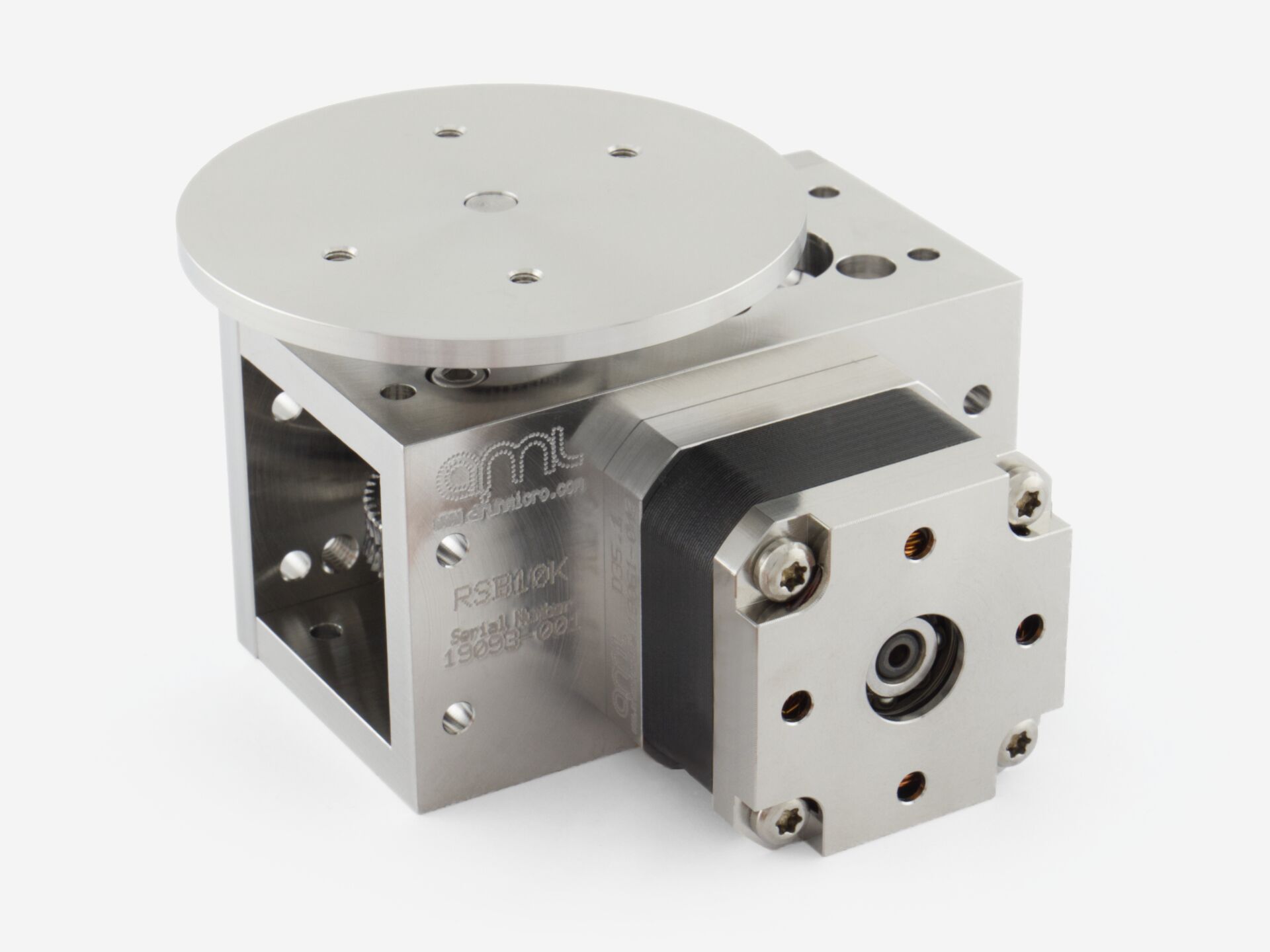

RSB10K Rotation Stage. 10,000 Steps Per Revolution
RSB20K Rotation Stage. 20,000 Steps Per Revolution

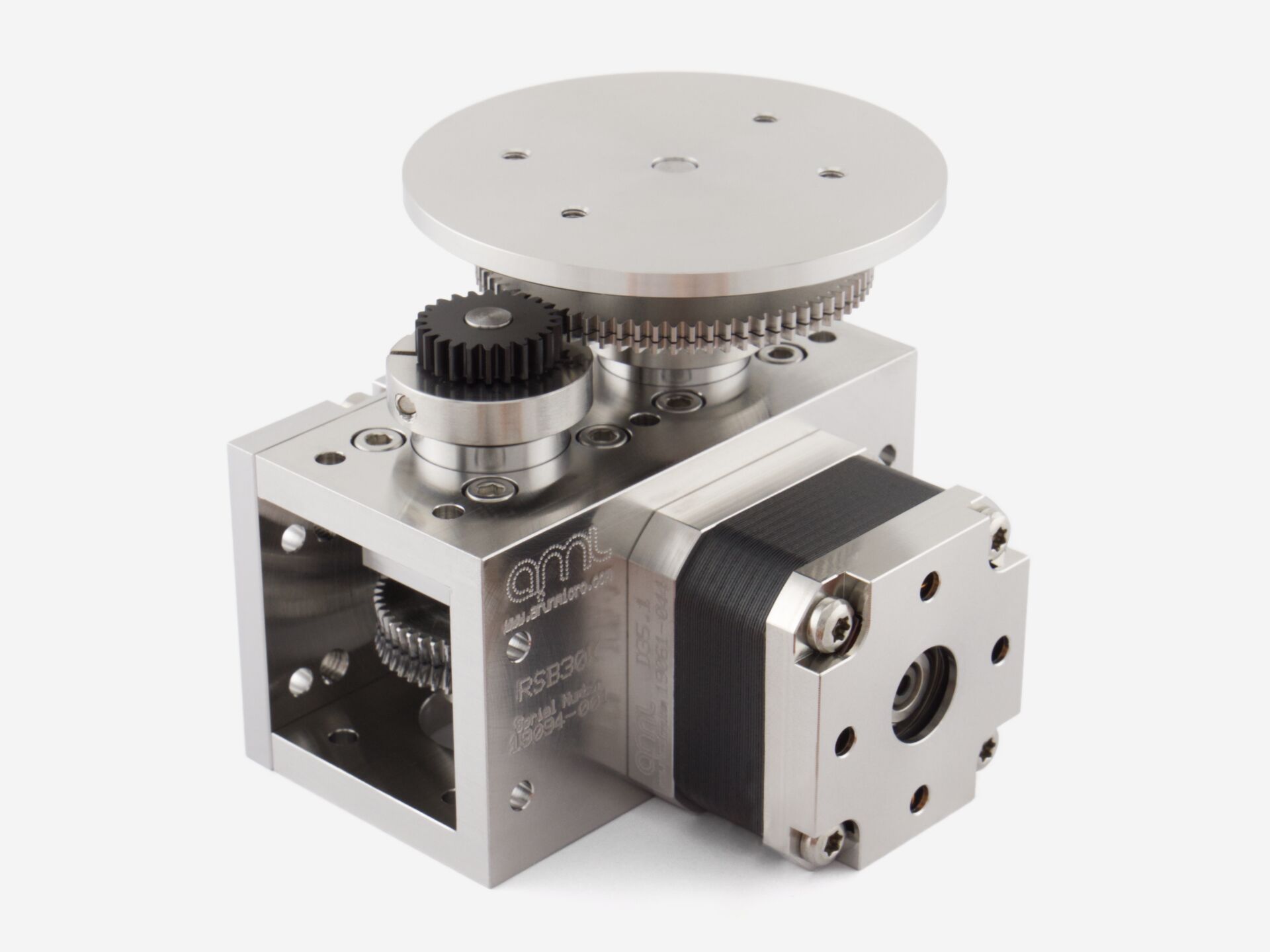

RSB30K Rotation Stage. 30,000 Steps Per Revolution

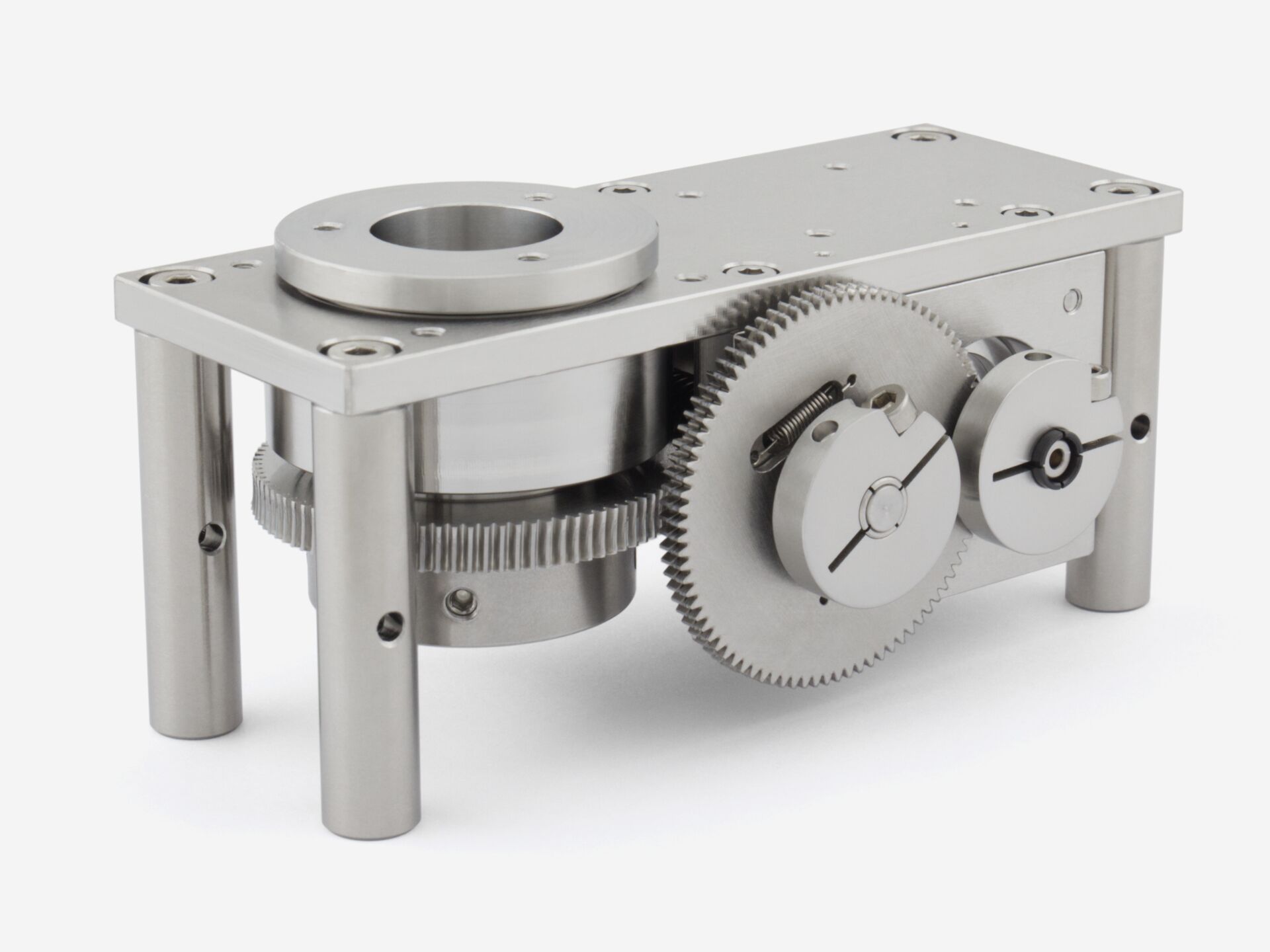

RSB90K Rotation Stage. 90,000 Steps Per Revolution
