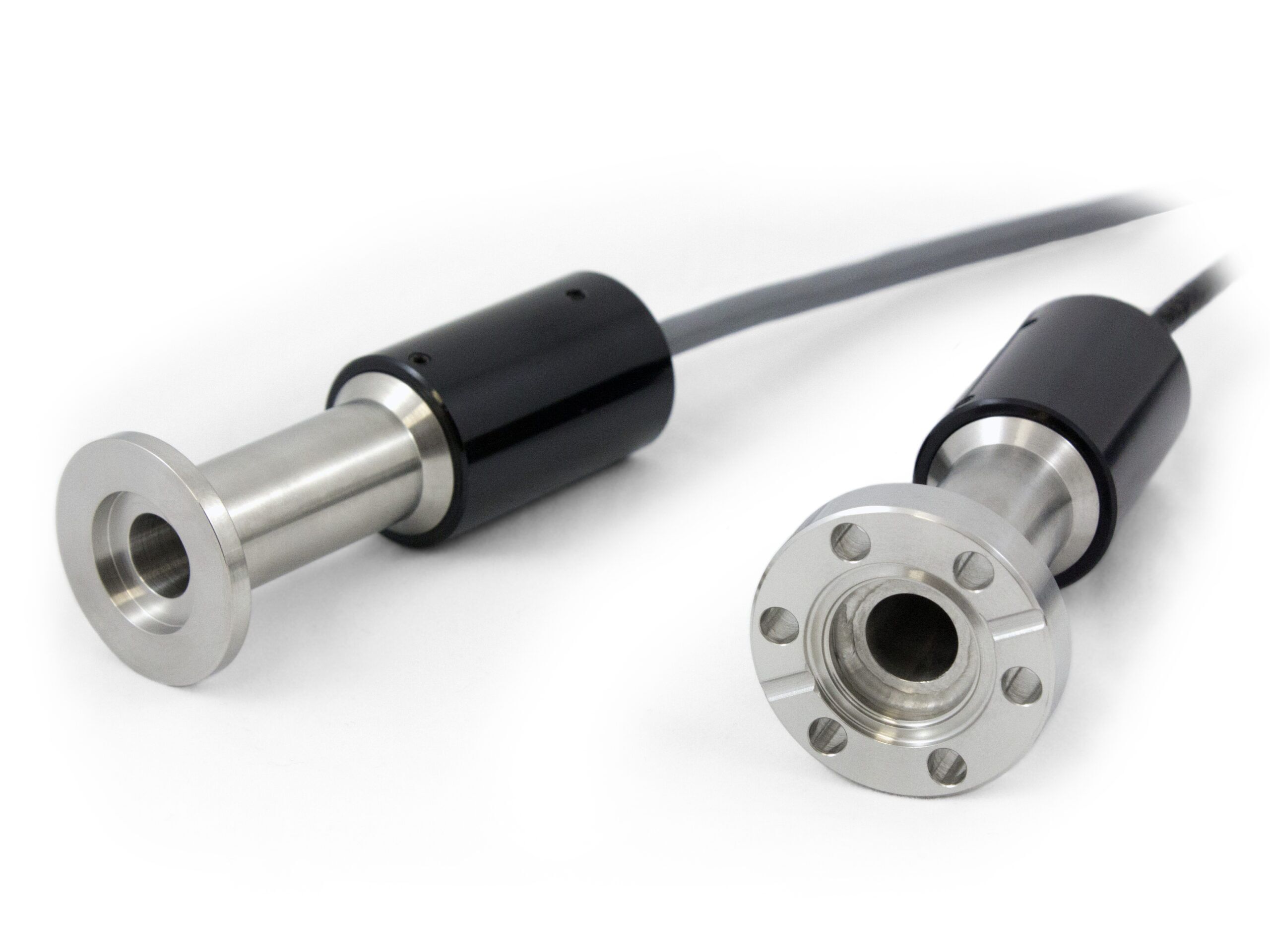

Pirani Gauge Heads and Leads
Pirani gauges detect the cooling effect of residual gas molecules on a heated filament. The rate of heat-transfer to the gas is related to pressure and causes a change in the electrical resistance of the filament or the amount of power required to maintain it at constant temperature. The filament is normally connected in a bridge circuit.
Features
Range: 200 mbar to 1 x 10-3 mbar
Intended for use in constant-voltage bridge circuits, which reduces the filament temperature and the rate
of filament corrosion or contamination at high pressures
May be interchanged between any AML NGC / PGC series or equivalent controllers without recalibration
Integral 3-metre lead and connector
Extension cables do not affect the calibration
Mounts in any orientation
200°C bakeable version available
RoHS compliant
Specifications
| MODELS | DESCRIPTION |
| PVB3 | Pirani Gauge DN16 CF, Bakeable |
| PVU3 | Pirani Gauge DN16 KF |
| PVX10 | Pirani Extension lead, 10 meters, non-bakeable |
| RELATED PRODUCTS | |
 |
NGC3 Ion Gauge Controller with Active Gauge Input Supports fully automatic gauge operation to continuously display pressure across the full range of 1200 mBar to 3 x 10-11 mBar. |
 |
Centering Ring KF16 centering ring used for mating KF flanges and include both the centering ring and O-ring. |
 |
Swing Clamp KF16 aluminium swing clamp used in conjunction with a centering ring for mating KF flanges. |
 |
Copper Gaskets Electrolytically refined oxygen-free high thermal conductivity (OFHC) Copper Gaskets for CF Flanges. Impermeable to gases and able to withstand moderatly high temperatures. |
 |
CF Hex Head Bolt & Nut Sets These stainless steel bolt sets fit clearance (through-hole) CF flanges. |
