Pirani AGP-1 to NGC3 Gauge Adapter

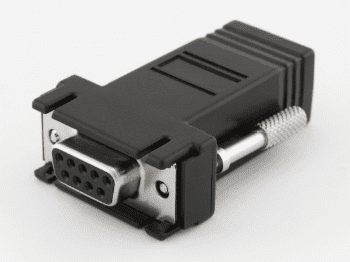

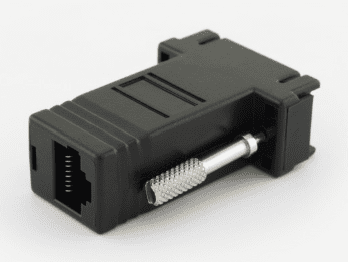

The XAD1 Active Pirani Gauge adapter features a DB9 female connector and an RJ45 female connector. It is used for adapting the AML AGP-1 Active Pirani Gauges’ female DB9 connector to an 8P8C RJ45 connector; so that any length patch lead can be used and connected to the NGC3 Ion Gauge Controller.

Buyers’ Guide
Contact Ian

Features

Adapter

Connections: 1 x DB9 (9 pin, D-Sub) Female, 1 x 8P8C RJ45 Female
Color: Black
85 mm x 34 mm x 16 mm (L x W x H)
Weight: 18 g

Cables

5m cable as standard
Connections: 2 x 8P8C RJ45 Male
For alternative lengths, please contact ian@microphotonics.com

Specifications

MODELS DESCRIPTION

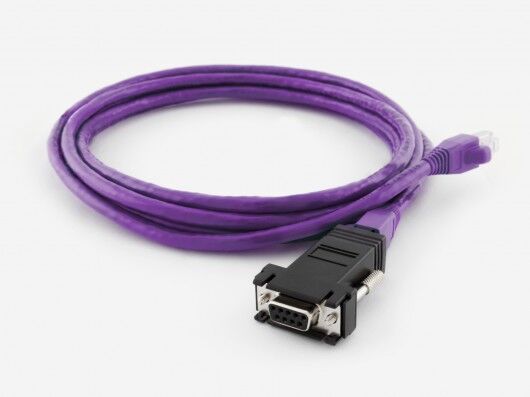

XAD1-05 XAD1 Adapter with 5 m shielded patch lead
RELATED PRODUCTS
NGC3 Ion Gauge Controller with Active Gauge Input
Supports fully automatic gauge operation to continuously display pressure across the full range of 1200 mBar to 3 x 10-11 mBar.
MEMS Active Pirani and Piezo Gauge
The AGP Pirani and piezo gauge incorporates cutting edge MEMS sensor technology with precision digital signal processing and advanced measurement algorithms.
