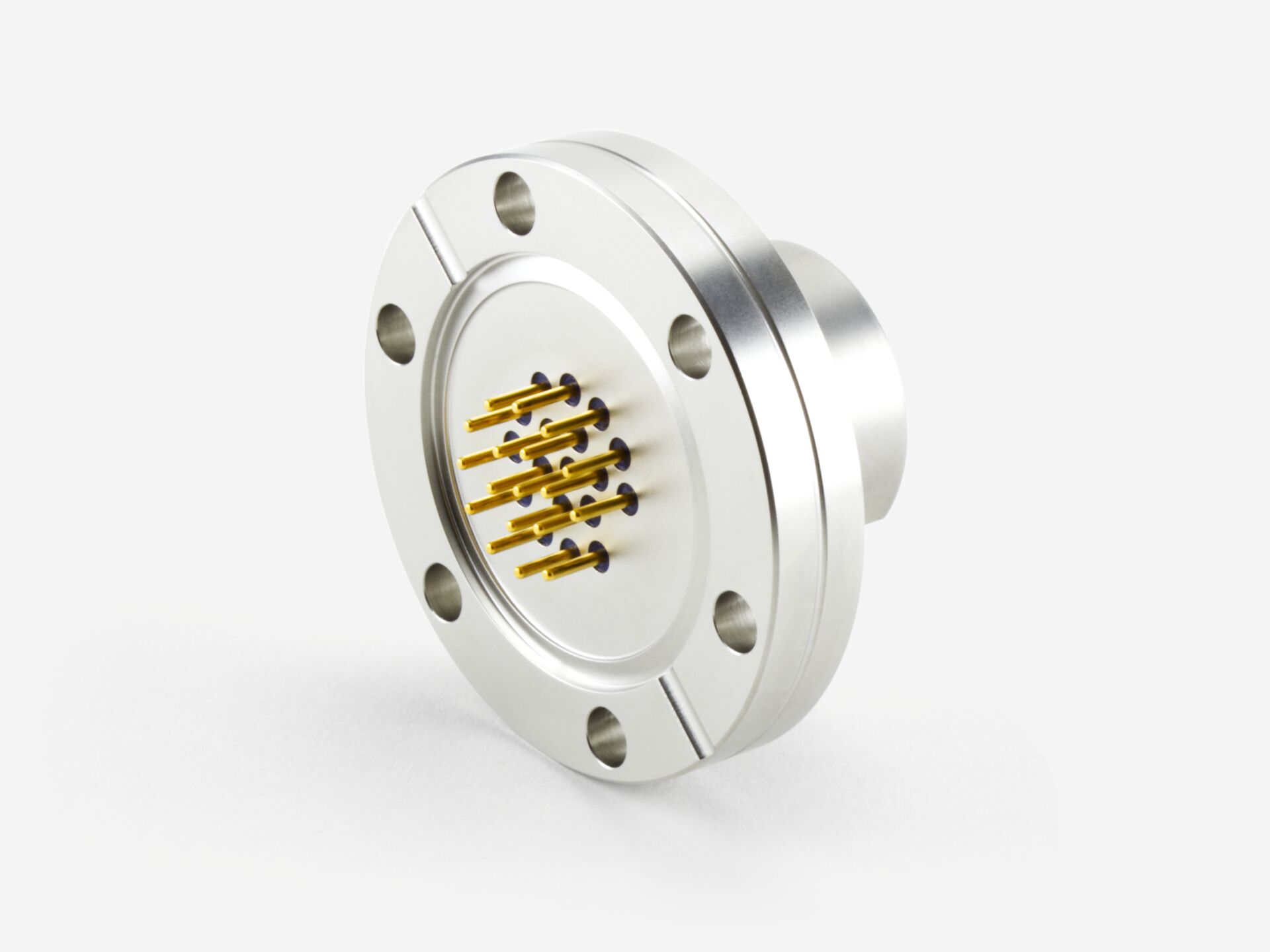

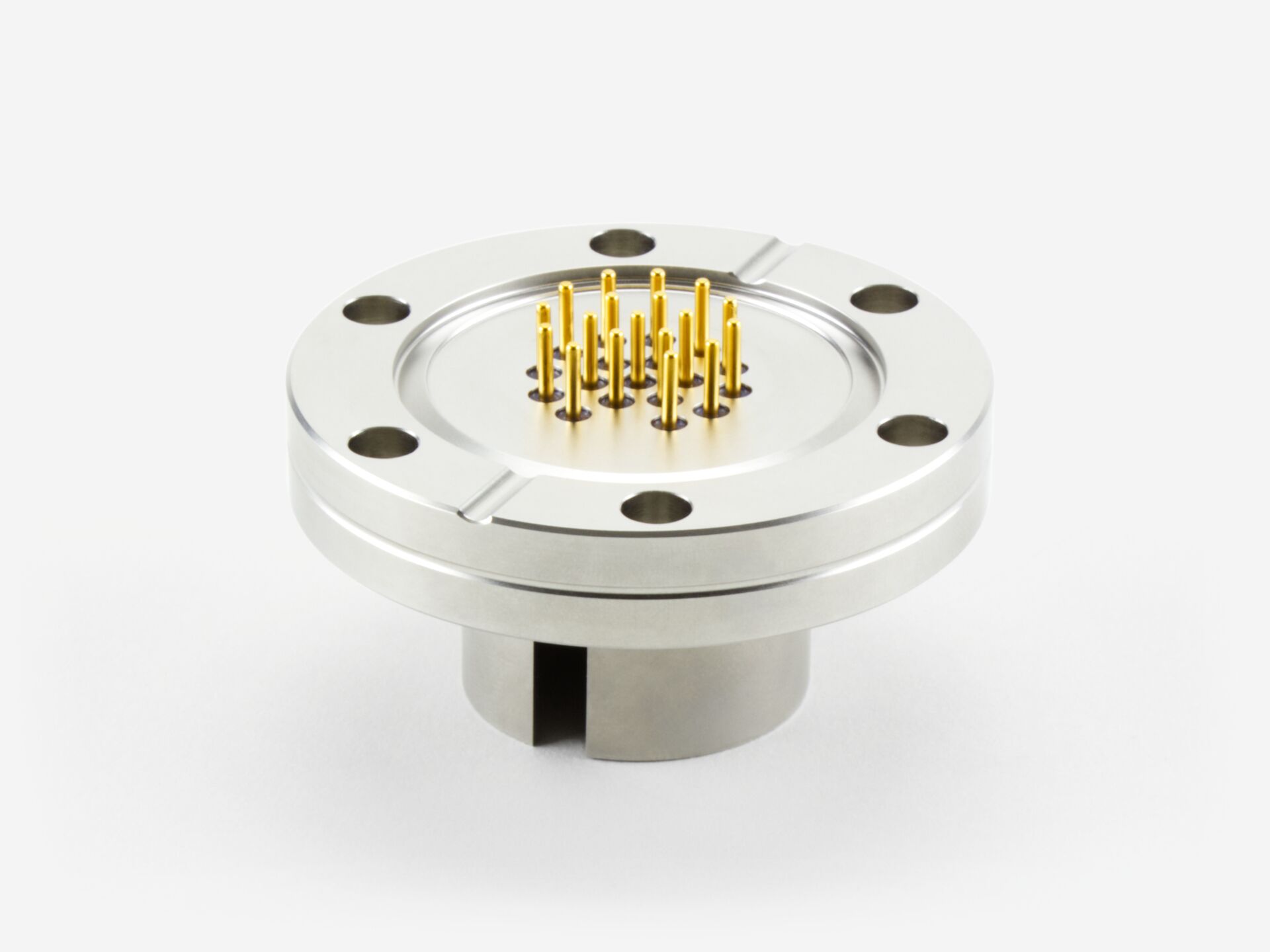

MLF18 18-way Electrical Feedthrough

AML produces a range of wiring accessories to complement their UHV compatible stepper motors. These components make installation of motors and other electrical items in vacuum much easier.

Features

18-way feedthrough on DN40 CF (70 mm OD) with individual glass compression seals

Suitable for use to 1 x 10 -9 mBar (7.5 x 10-10 Torr)

Bakeable to 250°C

Male to male connection

1.5 mm gold plated pins

Rating. 200 V, 5 A per pin. 15 A maximum per feedthrough

Specifications

MODELS DESCRIPTION
MLF18F Feedthrough, 18-way, GMS, NW35CF
RELATED PRODUCTS

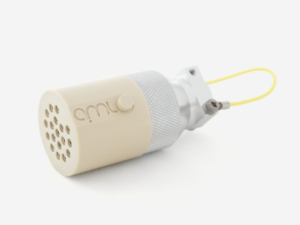

Air-Side Connector
Bakeable connector which mates with the air-side of the MLF18F feedthrough.

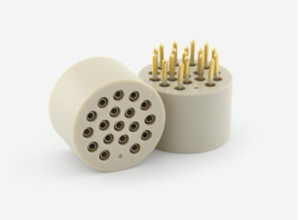

MLF18 UHV Connectors
UHV, 18-way Vacuum-Side Connectors.

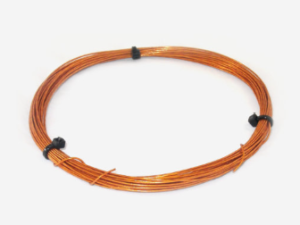

UHV Compatible Wire & Thermocouple
Polyimide covered wire and type K thermocouple.
Copper Gaskets
Electrolytically refined oxygen-free high thermal conductivity (OFHC) Copper Gaskets for CF Flanges. Impermeable to gases and able to withstand moderatly high temperatures.
CF Hex Head Bolt & Nut Sets
These stainless steel bolt sets fit clearance (through-hole) CF flanges.

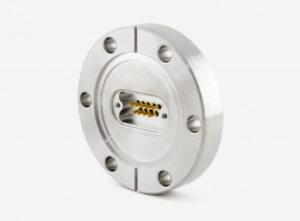

D-sub 9-way Electrical Feedthrough
D-sub 9-way feedthrough on a DN40CF flange (70 mm OD). Individual glass-ceramic compression seals and bakeable to 250°C.
