Ion Gauge Cables

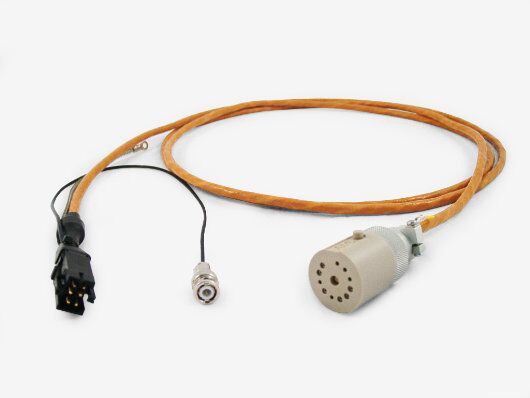

The AIGL is a 250 °C bakeable lead for use with AIG and similar ionization gauges connected to AML controllers. They are available in 3, 6 and 9 meter versions or custom lengths to order. AML use gold-plated connectors exclusively: these are essential for reliable long-term measurement of the ion current after baking. The cable is rated for the worst-case operating conditions of 50 W degas with a new tungsten filament during a 200 °C bake. This product incorporates a fully screened and guarded collector with >1×1015 Ω insulation. The connector housing is machined from PEEK and the cable clamp is anodized aluminum.

Buyers’ Guide
Contact Ian

Features

Composite cable for use with AML ion gauges and controller

Bakeable to 250°C

3, 6 or 9 meter standard lengths

Custom lengths available

Specifications

MODELS DESCRIPTION
AIGL3 Ion Gauge Cable, 3 meters, Bakeable
AIGL6 Ion Gauge Cable, 6 meters, Bakeable
AIGL9 Ion Gauge Cable, 9 meters, Bakeable
AIGLX Ion Gauge Cable, Custom Length, Bakeable
RELATED PRODUCTS
NGC3 Ion Gauge Controller with Active Gauge Input
Supports fully automatic gauge operation to continuously display pressure across the full range of 1200 mBar to 3 x 10-11 mBar.
Ultra High Vacuum Ion Gauges
Nude Bayard-Alpert ion gauges covering the vacuum range 1 x 10-3 to 3 x 10-11 mBar, intended for electron-bombardment degas.
Pirani Gauge Heads and Leads
Bakeable and non-bakeable Pirani gauges and extension leads for use with AML gauge controllers.
