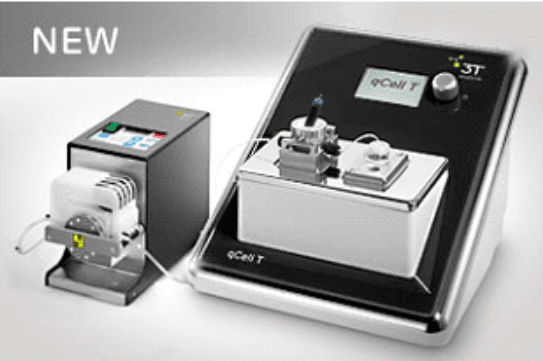

qCell T-eChem QCM-D instrument for Electrochemistry
The qCell T-eChem is the electrochemical version of the QCM-D instrument qCell T. The sensor platform is specifically adapted to combine the full range of electrochemical experiments with the specific insight of quartz crystal microbalance sensors. A potentiostat or galvanostat from Metrohm can be operated independently through its Nova™ control software, while qGraph qCell T software acquires sensor data, thermo control and fluidic data.
Features of qCell T:
With only 30 µl internal volume, the flow cell is designed for easy access, fast sensor replacement and to maintain a good seal in its closed working condition. All surfaces in contact with liquid samples are made of high chemical resistant materials, e.g. Teflon.
The flow cell head (top) is positioned over the sensor placed in the cell socket and locked with a quarter turn in a bayonet style. A tight seal is maintained by a thin O-ring which rests on the sheet – and not on the sensor – virtually eliminating any tension and ensuring high signal integrity.
After priming, the quartz sensor is exposed to the liquid and the measurement can begin.
The flow cell head can be equipped with a fully transparent plug allowing a user to visually follow the experiment over its time course.
Automated Fluid Control
qCell T series offers fully automated fluid control with high accuracy and repeatability. Flow rate can be precisely adjusted from 9 µl/min to 5600 µl/min.
The fluid system in qCell T combined with software qGraph feathures a complete automated control. The minimum flow rate reaches down to 9 µl/min and the 12 roller peristaltic pump provides high accuracy and repeatability even under low flow rate.
Along with the minimum sample volume requirement of 80 µl, the fluid system makes qCell T series the optimal instruments for laboratory and industrial applications using high cost fluid samples. The pump can be independently controlled when it’s not connected to qGraph software.
Fully automated temperature control ranging from +4 °C to +80 °C powered by self-developed Peltier system of closed water loop.
The Temperature control of qCell T series offers a sophisticated temperature control technology either as a stand-alone solution or integrated into automated workstations. Both the flow cell and the temperature unit where the samples are placed are thermostat controlled by the Peltier system. The temperature unit offers adaptors for different volumes of sample containers. The maximum speed is 10 °C/min for heating and 6 °C/min for cooling.
Easy Control Button
The easy control button (ECB) is the one button solution for qCell T series. It combines simplicity and ease-of-use.
The easy control button with LCD display gives you quick access to frequency & damping view, temperature control and system settings. When connection with PC is established and the qGraph software is started, the ECB is disabled to prevent misoperation.
The qCell series comes with a complete software suite for instrument control, signal acquisition, real time display, processing and data storage. The software is pre-installed and delivered with an All-in-one PC.
Individual panels display frequency, damping (dissipation), temperature and pump flow profiles. Online protocol commenting, coordinate display by pick point function, scripts for programming flow rates, patterns and repetitive cycles can be added and edited by the operator. Data export to qGraph Viewer, Excel™, Origin™ and other processing software is supported.
For more information or pricing, call Ian at (610) 366-7103 or email Ian@microphotonics.com
