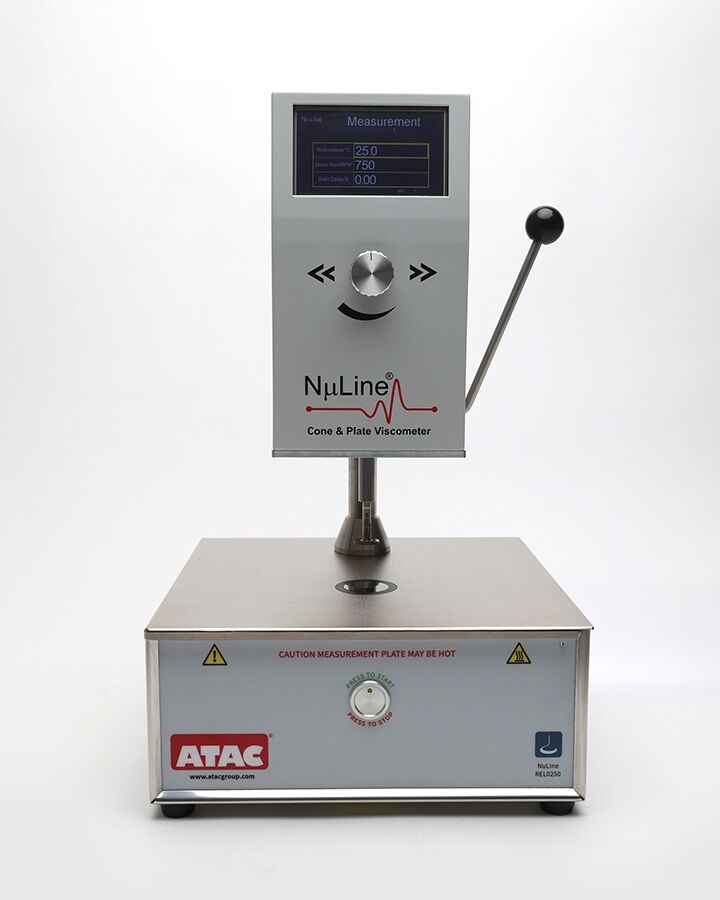

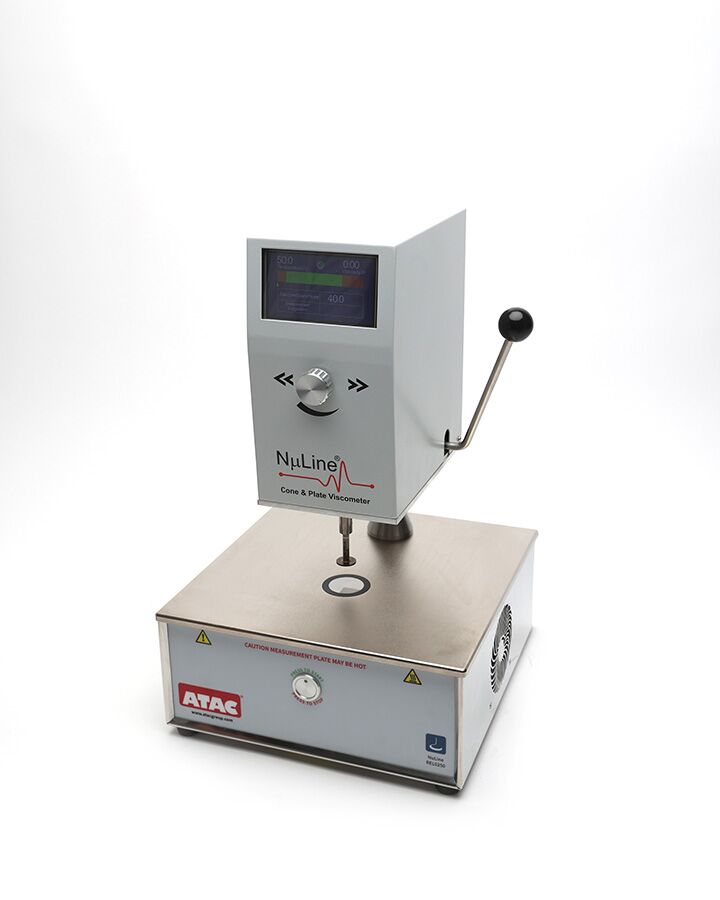

NuLine Cone and Plate Viscometer
Our NuLine Cone and Plate Viscometer is pre-calibrated, certificated, and ready to use straight out of the box and is used to measure viscosity in a wide range of process applications including analysis of paint, cosmetics, varnish, inks, resins, food, bitumen, oil, adhesives, and pharmaceuticals. It can be calibrated to operate with multiple cone sizes in the same machine and is accurate to within 1%, while its rugged design makes it ideal for use as an “At-Line” benchtop viscometer. The Nuline Viscometer was developed by ATAC Group, the makers of precision analyzer solutions that have driven efficiency, quality, and safety since 1993.
Two Temperature Versions
- Low Temp — 41°F – 302°F
- High Temp — Ambient to 482°F
Features
Ease of Use
This Cone and Plate Viscometer is pre-calibrated, certificated, and ready to use straight out of the box. The NuLine Viscometer can be calibrated to operate with multiple cone sizes in the same machine. Its rugged design makes it ideal for use as an ‘At-Line’, benchtop viscometer.
Adaptable & Accurate
With a range of digitally-controllable speeds, cone sizes (2, 5, 10, 20, 40, 100 Poise), and temperature ranges, the NuLine Cone & Plate Viscometer is fully adaptable. The PC interface software allows users to analyze and record results and run shear rate or time sweeps. It is highly accurate – better than 1% of span using standard calibration oils, making it the choice of material property analysts the world over.
General Features
Integrated stick mouse for software control
Precise beryllium-copper spring-based torque measurement
Simple automated cone calibration using NIST standard oils
Automated temperature calibration (using supplied kit)
Accuracy and Repeatability
Better than 1% of span using standard calibration oils
Reliable Viscometry
The rugged design of the NuLine range is based upon the original ICI Paint Cone & Plate viscometer, which in turn became the famous REL Viscometers. It meets the high demands of modern manufacturing environments, with both reliability and performance standards.
Specifications
Speeds
Variable 5 to 900 rpm in integer steps or 5 to 90 RPM in 0.1 RPM steps (software selectable mode). Digital speed control typically better than 0.02 RPM
Cone Types (included)
2 Poise, 5 Poise, 10 Poise, 20 Poise, 40 Poise and 100 Poise
Temperature Ranges
Two versions: 41°F (5°C) to 302°F (150°C), or Ambient to 482°F (250°C). Both ranges are available with variable temperatures having a resolution of 32.18°F (0.1°C) and control typically + or – 32.18°F (0.1°C)
Selectable Units
°C or °F, rpm or sec^-1, Poise or PAs.
Power
85-240VAC 50/60 Hz single phase universal power, 150 watts
Warm Up
10 minutes from ambient
Digital Display
4.3″ color LCD display
PC Interface and Firmware
USB connection to external PC with free measurement Windows-based software (in English).
The instrument firmware is also upgradable via USB. Bilingual display.
Multilingual firmware that can be customized by request.
Dimensions
H = 20in (510mm), W = 12in (302mm), D = 12in (302mm)
Weight: Low-temperature = 30lb (3.5kg), High-Temperature = 29lb (13kg)
