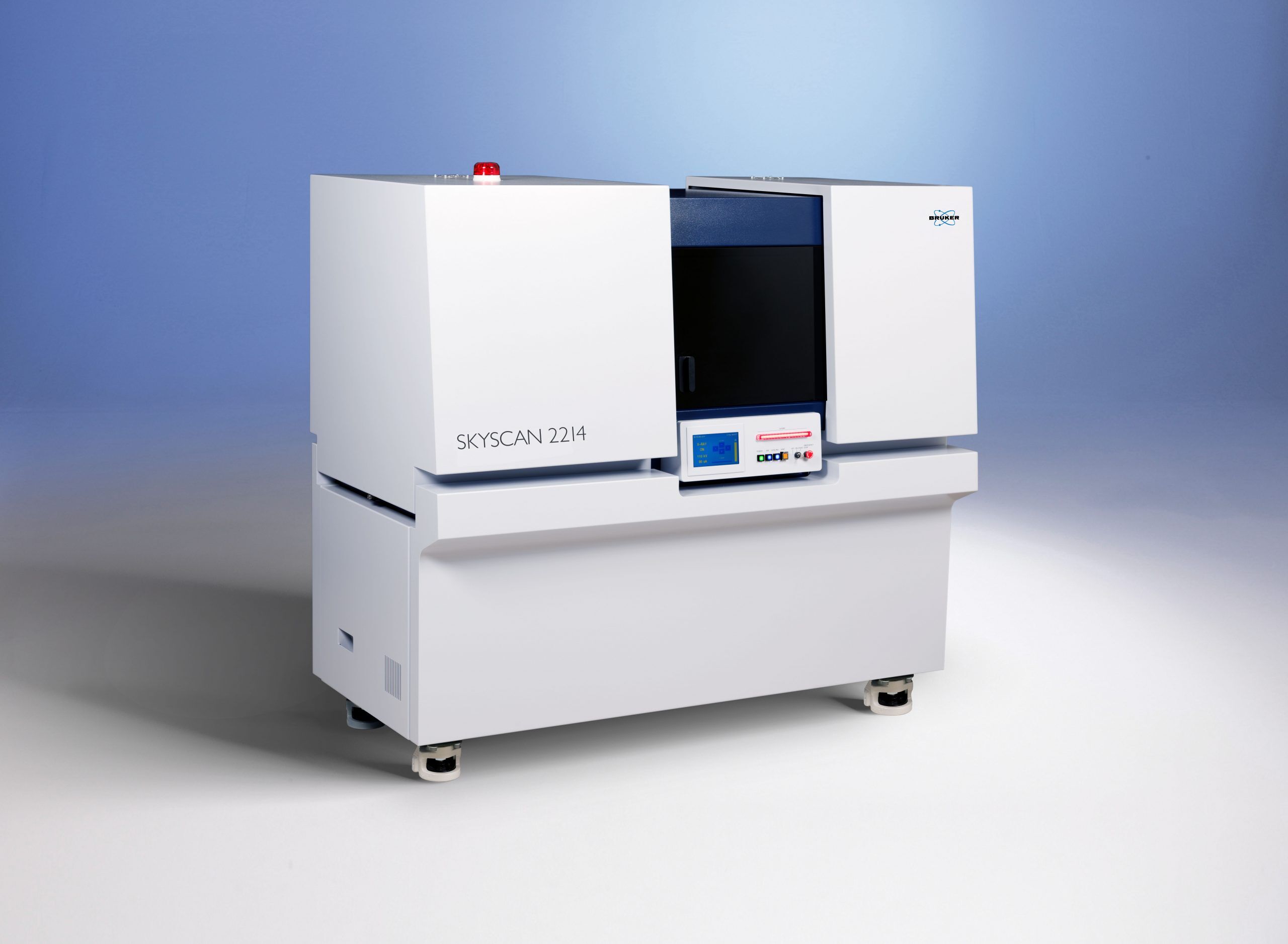

    SkyScan 2214 | multi-scale X-ray Nano-CT

    SkyScan 2214 | multi-scale X-ray Nano-CT

    The new MULTISCALE X-ray nanotomograph SkyScan 2214 covers the widest range of object sizes and spatial resolutions in one single instrument. The instrument opens unique possibilities for 3D imaging and exact modeling of geological materials in oil and gas exploration, composite materials, Li batteries, fuel cells, electronic assemblies, and more.

    Versatile: accommodates small to very large size samples

    The SkyScan 2214 accepts objects as large as 300mm in size and also provides submicron resolution for small and medium size samples. The system is equipped with hierarchical reconstruction software, which is GPU-accelerated. It can scan using both circular and helical (spiral) scanning trajectories. The data from helical scans is reconstructed by a licensed reconstruction algorithm that provides highly accurate information for metrological measurements.

    Multiple options: highest quality in relatively short scanning times

    The system contains an open (pumped) X-ray source with a diamond window and <0.5 microns spot size. It can be equipped with one to four X-ray detectors: flat-panel for large objects; 11Mp cooled CCD with a wide field of view; 11Mp cooled CCD with a medium field of view; and 8Mp cooled CCD for the highest spatial resolution. Automatically variable acquisition geometry and phase-contrast enhancement allow users to obtain the best possible quality in relatively short scanning times.

    Bruker micro-CT software

    The full range of Bruker-microCT software is supplied, including fast volumetric reconstruction, software for 2D/ 3D quantitative analysis and for realistic 3D visualization. Supplied software also includes volume rendering and easy creation of realistic movies with the possibility for virtual flight around and inside the reconstructed object’s microstructure. Reconstruction results can be sent to iPad, iPhone, or Android devices. Special software for mobile platforms performs volume rendering and virtual cut of objects with touch screen gesture controls.

    The full range of the software for 2D / 3D quantitative analysis and for realistic 3D visualization is also supplied with the scanner.

    Will micro-CT work for my application?  Request a FREE Micro-CT Evaluation Scan

    We can help you determine if micro-CT is right for your research and guide you to the system best suited for your application. With over 50 years’ of collective experience, our micro-CT experts will select the best instrument for your sample, perform  a FREE evaluation scan in our Micro Photonics micro-CT laboratory, and reconstruct the data for a thorough investigation of your sample.

    Request: FREE EVALUATION SCAN to see how micro-CT works with your application.

    You will receive a comprehensive test report, cross-sectional images of your sample, and a copy of our visualization software for enhanced viewing in both 2D and 3D . . . explore within

    READ MORE on how micro-CT works and can support your research.

    Micro Photonics Inc. provides instruments, laboratory services, training, and support from micro-CT experts
    to help research scientists meet their most complex laboratory demands.

    More information: FREE BUYERS’ GUIDE

    Request: FREE EVALUATION SCAN to see how micro-CT works with your application.

    Contact: Benjamin Ache, Product Manager, Bruker Micro-CTs     P: 610-366-7103 ext 115.

    Call Ben at (610) 366-7103 or email:

    • Multipurpose system for samples up to 300 mm in size and resolution down to 60 nm pixel size
    • Unique X-ray source with <500 nm spot size
    • Innovative modular design with up to 4 different, field-upgradeable detectors for ultimate flexibility
    • World’s fastest 3D reconstruction (InstaRecon®)
    • Exact reconstruction algorithm for helical scanning
    • Almost maintenance-free system, reducing downtime and cost of ownership
    X-ray source open (pumped) type with diamond window 20-160kV, 13W max.
    X-ray detector(s) 6Mp flat-panel + 11Mp large format CCD + 11Mp mid format CCD + 8Mp hi-res CCD
    Image formats up to 8000x8000x2300 pixels after a single scan

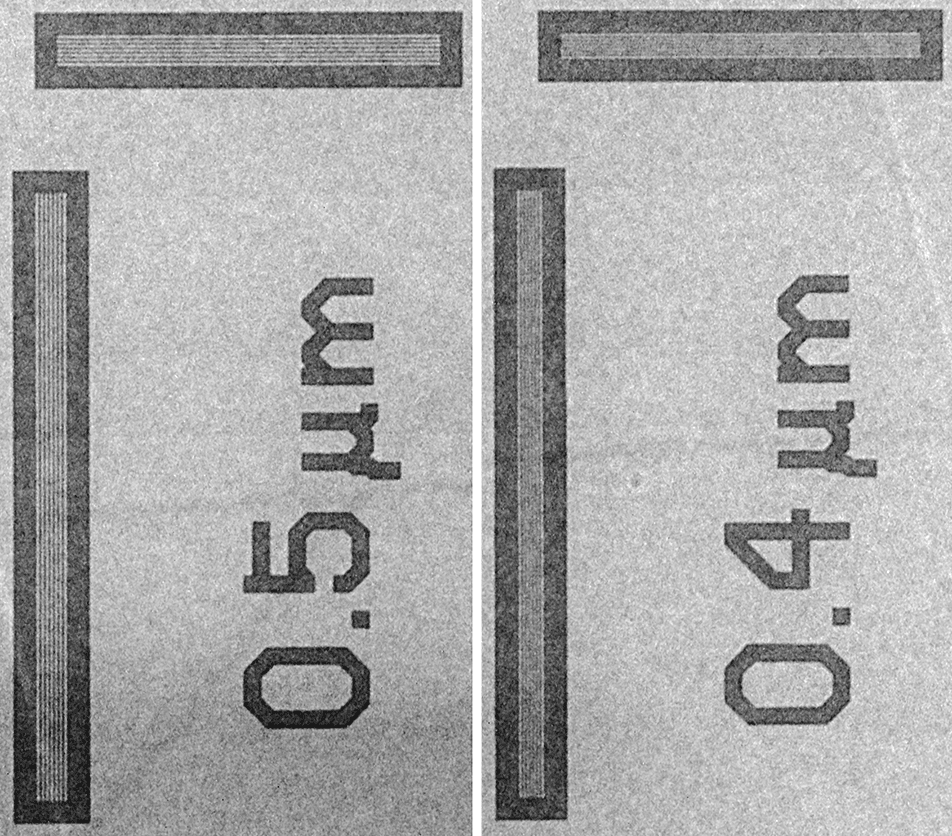

    Spatial resolution 60nm smallest pixel size, <500nm low-contrast resolution (10%MTF)
    Positioning accuracy <50nm for rotation, anti-vibration granite platform with pneumatic leveling

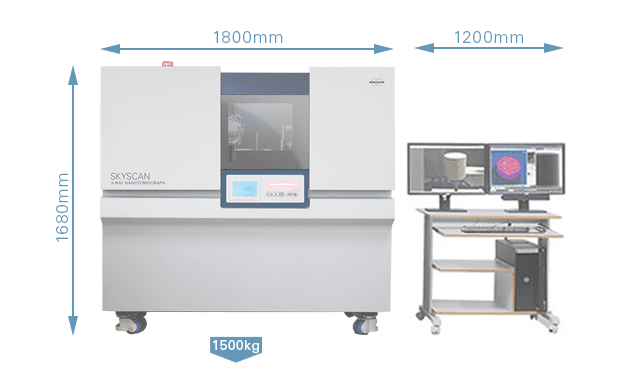

    Maximum object size 300mm in diameter (140mm scanning size), 400mm in length, maximum object weight is 25kg
    Radiation safety <1 µSv/h at any place of the instrument surface
