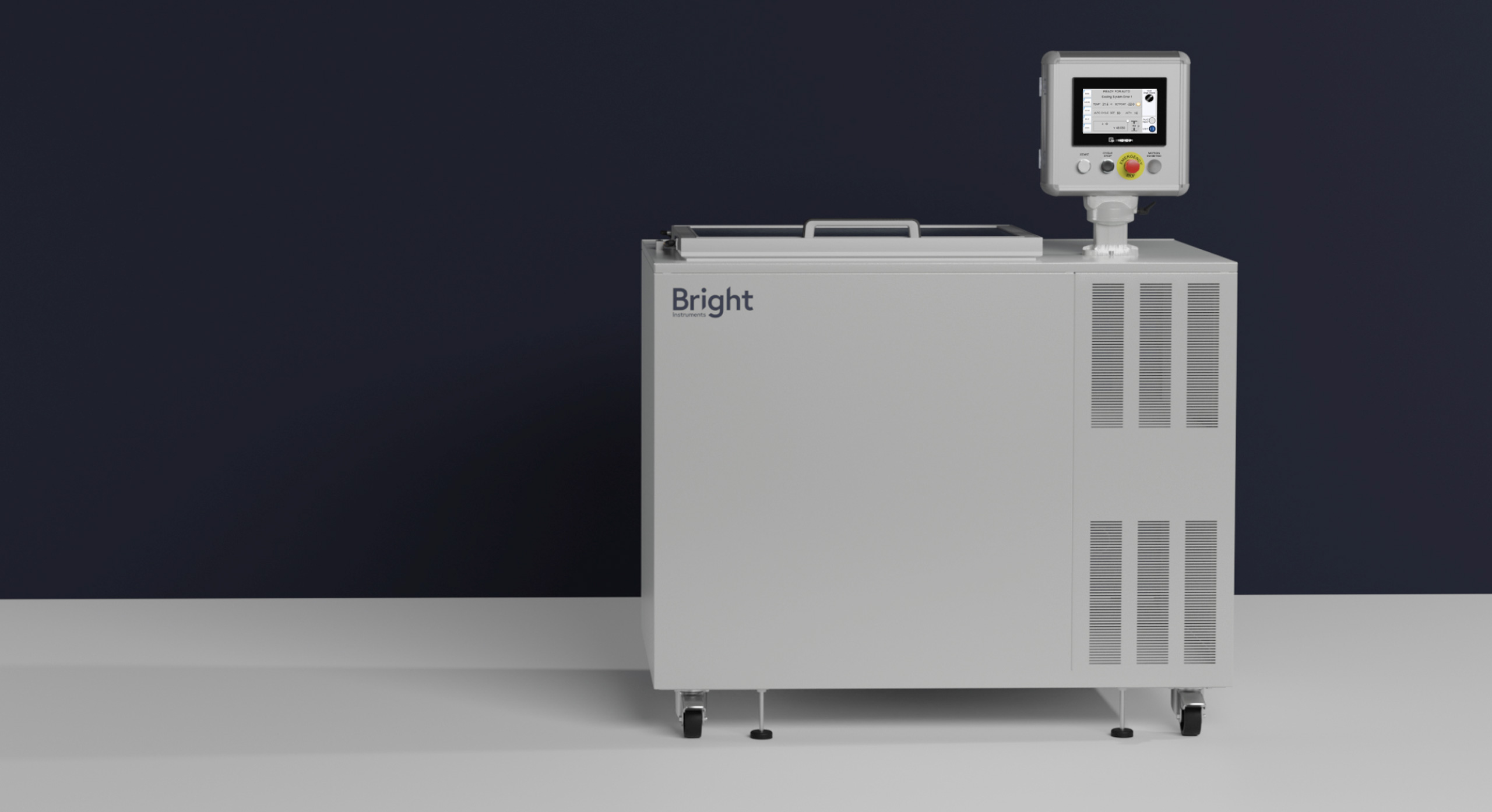

Bright Instruments 9150 Cryostat

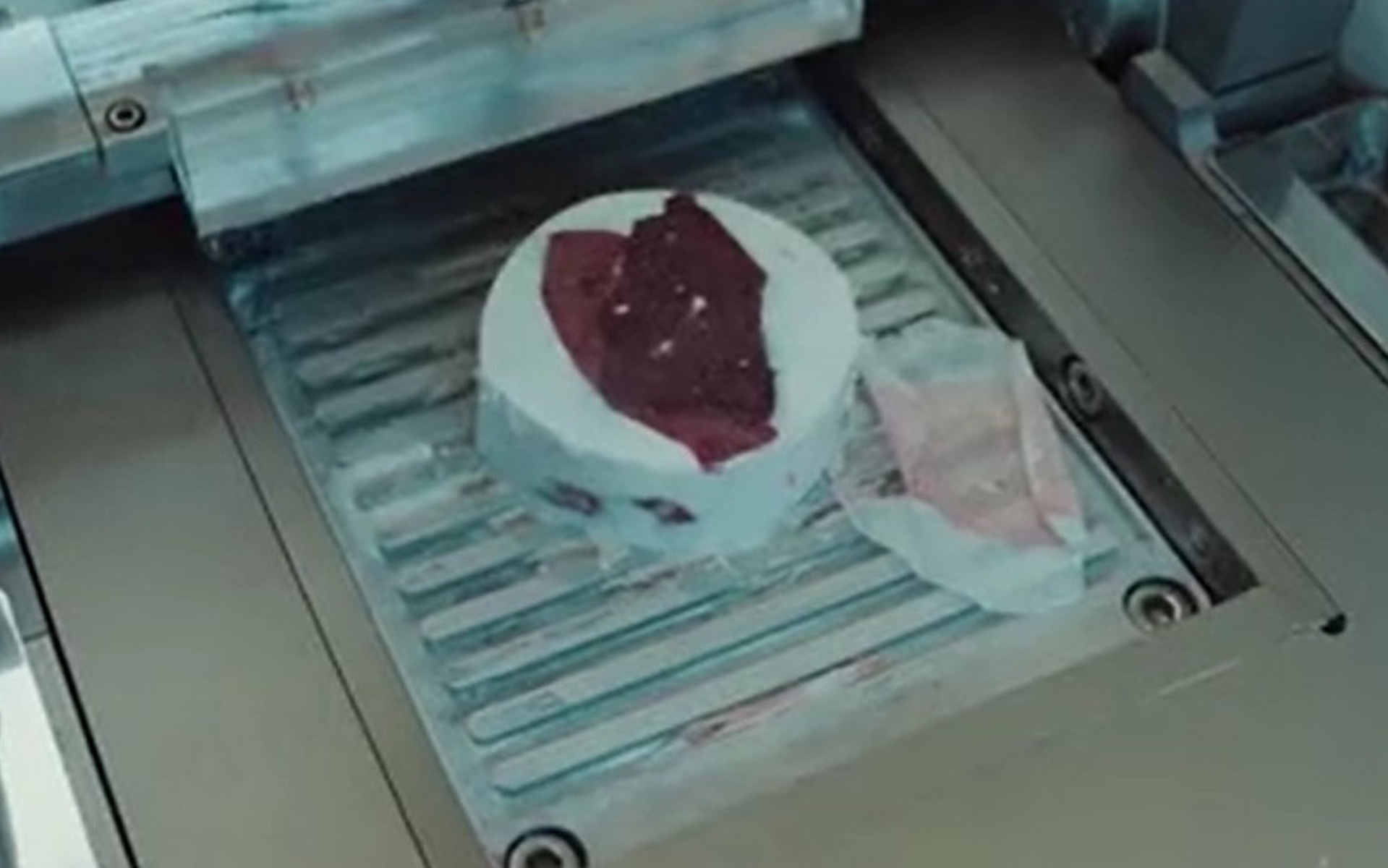

The whole organ sectioning system has a large stage for specimens up to 110 (H) x 150 (W) x 150 (L) mm in size. The system offers sectioning in 1um increments between 5um and 200um. Specimens could include whole monkey brains; whole human hearts, kidneys, and spleens; and partial human livers and lungs.
Whole organ cryosectioning preserves the tissue architecture, as well as molecular and cellular integrity of a whole organ specimen, making it ideal for molecular analyses like immunohistochemistry, in situ hybridization, or spatial transcriptomics.
Such specimens could include …
Whole Monkey Brain
Whole Human Heart
Whole Human Kidney
Whole Human Spleen
Partial Human Liver
Partial Human Lung
Features

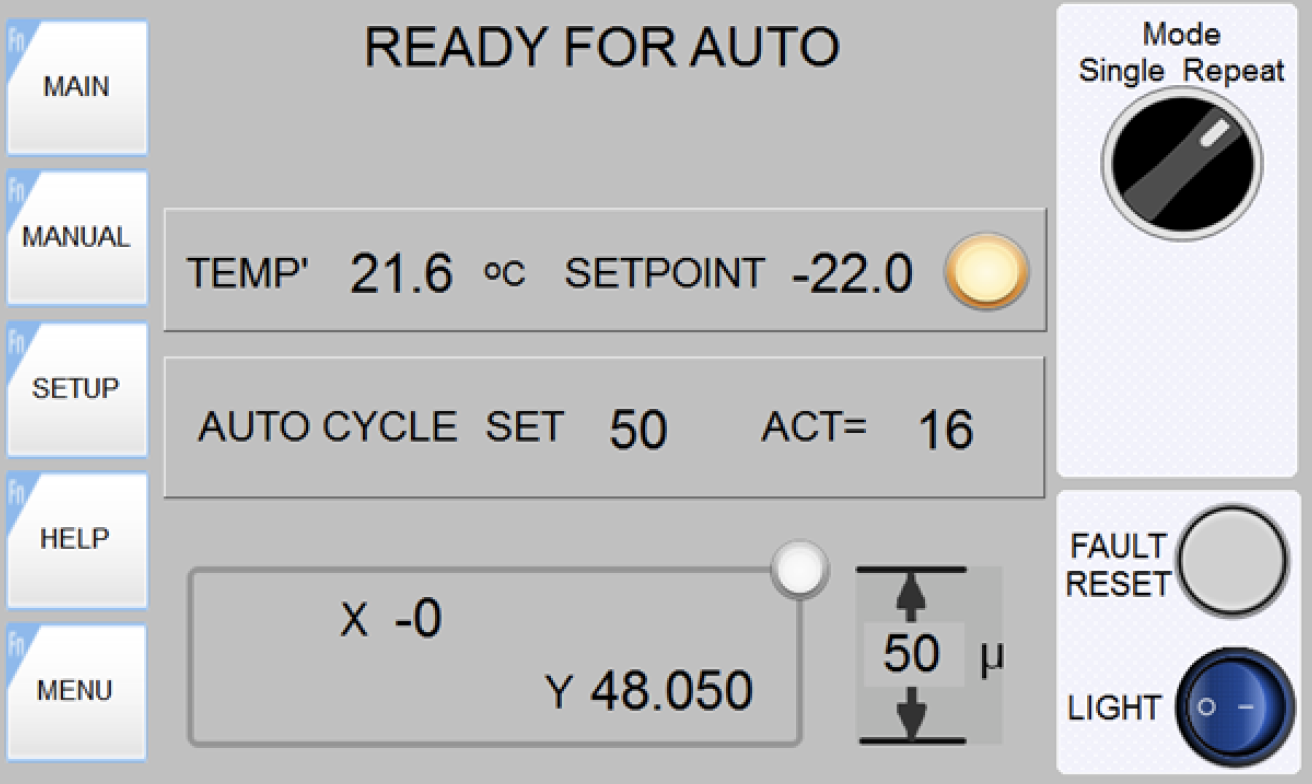

The Control panel is the central point of control for the unit, allowing the user to easily customise settings such as temperature, thickness, batch quantities and switch between single and continuous cutting modes.
The large cryostats are made to order and can have additional design specifications as determined by the customer application – please contact us to discuss your research needs.
- Touch screen Control.
- Waste collection tray.
- Heated anti-fog window.
- Can cut a large range of specimen sizes up to 400 x 150 x 110mm.
- Chamber can be cooled down to temperatures of -40.
- Customisable Zonal speed control for quicker sectioning.
- Solid steel/Tungsten knife & disposable blade options available.
- Knee switch (optional).
- Easy to clean.
- Ample cold storage.
- 3-5 year warranty (optional)
Specifications
-
Refrigeration – No. of Compressors Minimum Temperature
2 (Dual Compressor) -35°C @ 21°C Ambient
-
Chamber
Stainless steel
-
Illumination
LED light strip x 2
-
De-misting
Automatically operated Triplex heated glass window.
-
Cabinet
PVC coated sheet steel.
-
Dimensions
Chamber dimensions: H670 x W670 x D394mm, Cabinet dimensions: H1095 x W1220 x D763mm (Excluding control unit) H1440 x W1220 x D763mm (Including control unit) Macrotome Specification:
-
Construction
Solid aluminium frame, Hard anodised.
-
Section Thickness Range
1μm to 200μm in 1μm increments. (It is advised that a machine of this size is not used to section below 5 microns).
-
Knife Block Movement
N/A. Fixed.
-
Cutting Stroke
189 mm
-
Maximum Specimen
Size 110 (H) x 150 (W) x 150 (L) mm
-
Movement
Automatic operation, Fixed blade, horizontal and vertical axis table movement.
-
Cutting speed range
0-80mm/sec
-
Anti-roll system
Adjustable Perspex anti-roll plate.
-
Electrical
240V AC Single Phase, Neutral, Earth. 50Hz. 20A.
