3000-01 Clini RF Freezer

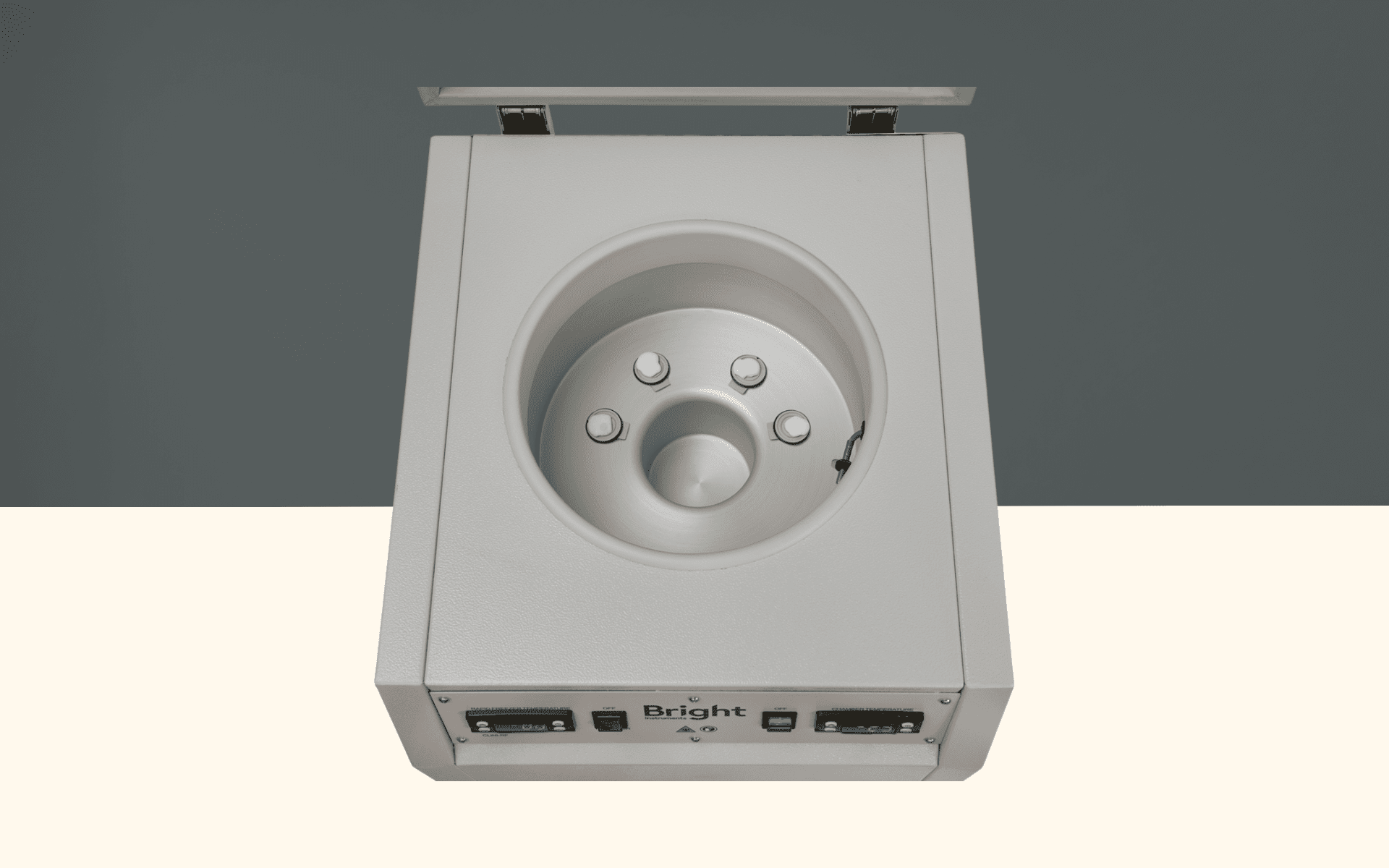

The Bright Clini-RF is a small, free standing, top opening, and ultra low temperature freezer. Its function is to rapidly freeze tissue specimens ready for cryotomy or for storage. The Clini-RF is the safe alternative to snap-freezing in Liquid Nitrogen, removing the hazards of cryogenic handling.
Inside the Clini-RF are two cylindrical chambers. The upper chamber is held at -40°F ( -40°C ) and the lower at -112°F (-80°C). The lower chamber can be filled with 3M’s Novec HFE-7100, into which specimens can be immersed. Alternatively, an aluminium block can be incorporated into which a specimen holder or chuck can be fitted. The upper chamber is used as a short term storage area for specimens after they have been initially frozen in the lower chamber.
Features
A seven day timer is fitted to the Clini-RF so that during out-of-work hours when not in use it can be run in energy saving standby mode with both the upper and lower chambers running at -40°F ( -40°C ) thus saving power. At the start of the working day it is automatically switched to its normal operating mode and the lower chamber brought down to 112°F (-80°C).
- Replaces liquid nitrogen freezing systems
- Replaces carbon dioxide freezing systems of all types
- Offers a distinct improvement in laboratory safety
- Easy to use, therefore little operator training
- Upper chamber available for storage at -40°F ( -40°C )
- Hold 3M’s Novec Engineered Fluid HFR-7100 for immersion of specimens Typical tissue cooling rate of 0.5°C/s
Specifications
-
Compressor type
1 x 15cc displacement (primary) / 1 x 12cc displacement (secondary)
-
Refrigerant
Ozone friendly HFC refrigerants – R404a (primary) R23 (secondary)
-
Cooling power
300 watts, Main freezer at -40°C, Rapid freezer at – 70°C
-
Lowest set temperature
-83ºC
-
Rapid freezer to -80ºC (Liquid bath or solid freezer block)
50 minutes (Main freezer at -40°C)
-
Fixed freezer block (optional) to -80ºC
Less than 30 minutes (Main freezer at -40°C)
-
Total power consumption
1100 watts
-
Dimensions
Cabinet: H1000 x W450 x D500mm, Freezer dimensions: Diameter 275 x D136mm, Rapid freezer dimensions: Diameter 95 x D95mm
-
Packing
Packed weight: 113kg, Unpacked weight: 85kg
