NRecon Reconstruction Software

Fast micro-CT reconstruction software

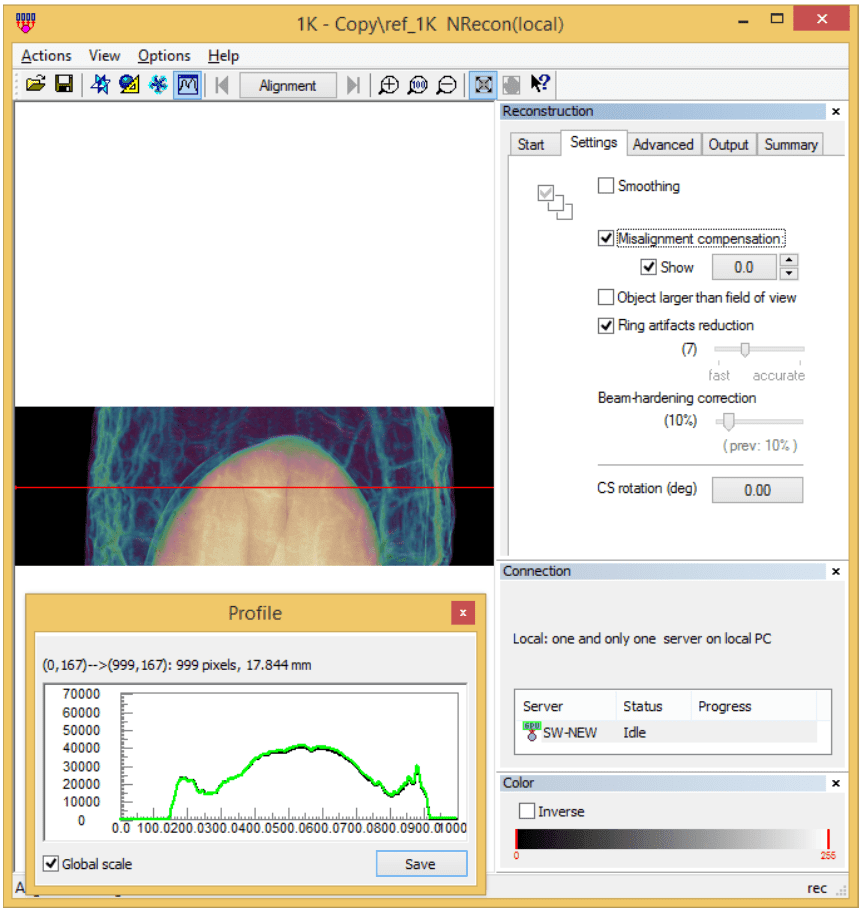

SkyScan’s volumetric NRecon reconstruction software is used to reconstruct cross-section slices from acquired Micro-CT angular projections through the object. The program uses a modified Feldkamp algorithm with automatic adaptation to the scan geometry in each micro-CT scanner. Reconstructed slices can be saved in BMP, TIFF, JPG or numerical data format. Reconstruction includes beam-hardening correction, alignment optimization, ring artifact correction, reconstruction in a restricted volume of interest, reconstruction of objects wider than the field of view, external and internal calibration into Hounsfield units and interactive density window selection.

NRecon accepts large format angular projection images to reconstruct cross section images with up to 8000×8000 pixels. User-friendly batch processing allows many reconstruction jobs with different settings to be run sequentially without operator input.
