UHV Stage VSM17-X

This linear translation stage is suitable for use in UHV and can support loads of up to 50 kg and travel from 50 to 200 mm. 1 µm or 5 µm resolution and zero backlash allows for precise in-vacuum motion. They can be used standalone or as part of a complex motion system, as they are compatible with the range of VSM17 modular stages. They have very high rigidity, which is necessary where several transporters are stacked for compound motion or where offset loads are present. They are manufactured with UHV compatible material and construction methods and utilize AML UHV stepper motors.

View Datasheet

Features

UHV Compatible
Suitable for use below 1 x 10-10 mBar (7.5 x 10-11 Torr) and bakeable to 200 °C (120 °C when optical encoder is fitted)

Travel Lengths
From 50 to 200mm

Resolution and Repeatability
Standard resolution of 5 um (1um for HR option)
Repeatability is better than 0.5um

Traverse Speed
Traverse speeds from 5 to 15 mm/sec (3mm/sec for option HR)

Compatibility
Stackable for XYZ orientations. Compatible with all VSM17 and VSM23 modular stages

Customizable
Can be fitted with limit switches or optical encoder. Please call our engineers to discuss the feasibility of your specific, custom needs

Options available
High-resolution, radiation resistant, dry lubrication versions





Specifications

MODELS DESCRIPTION

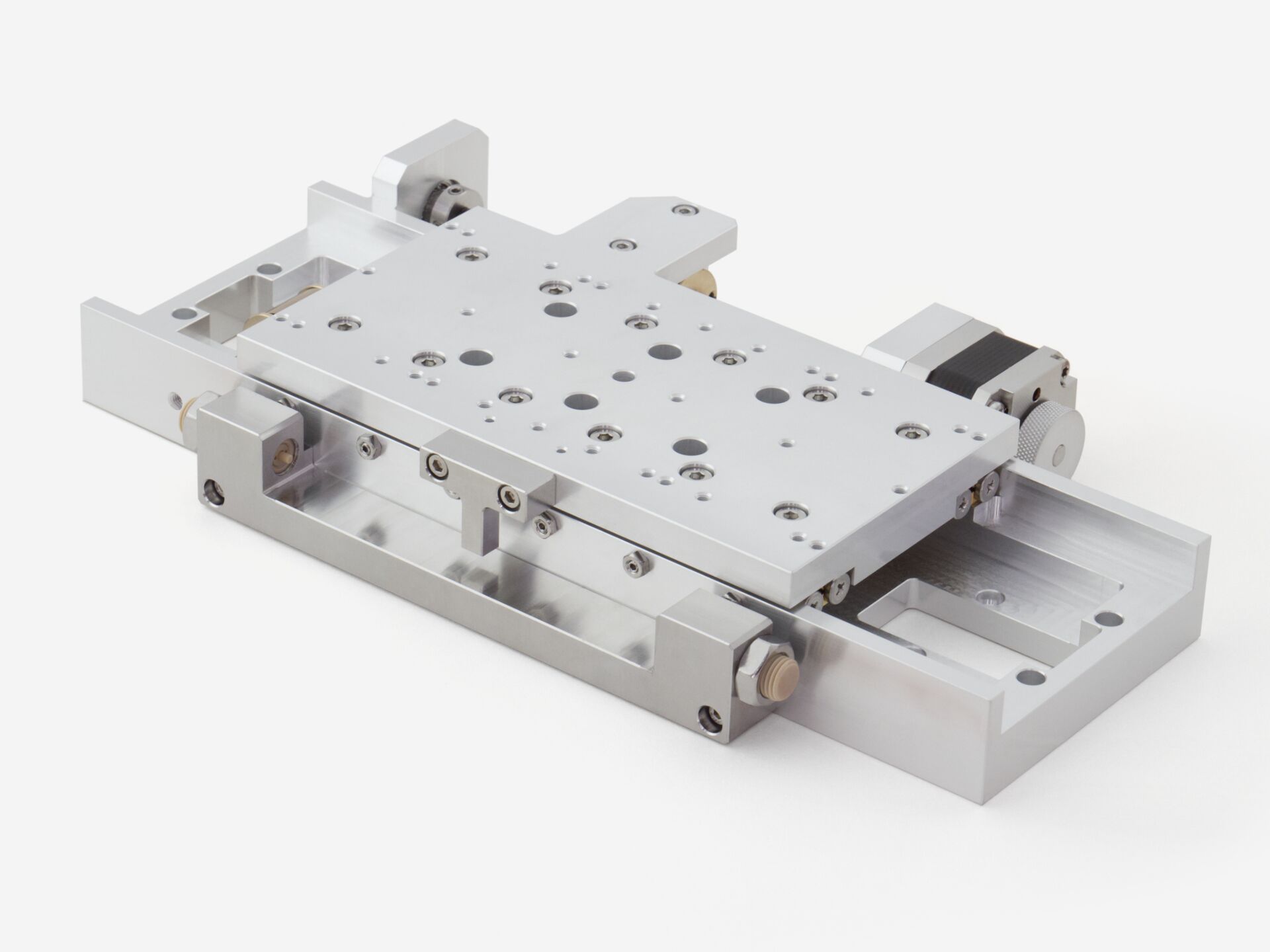

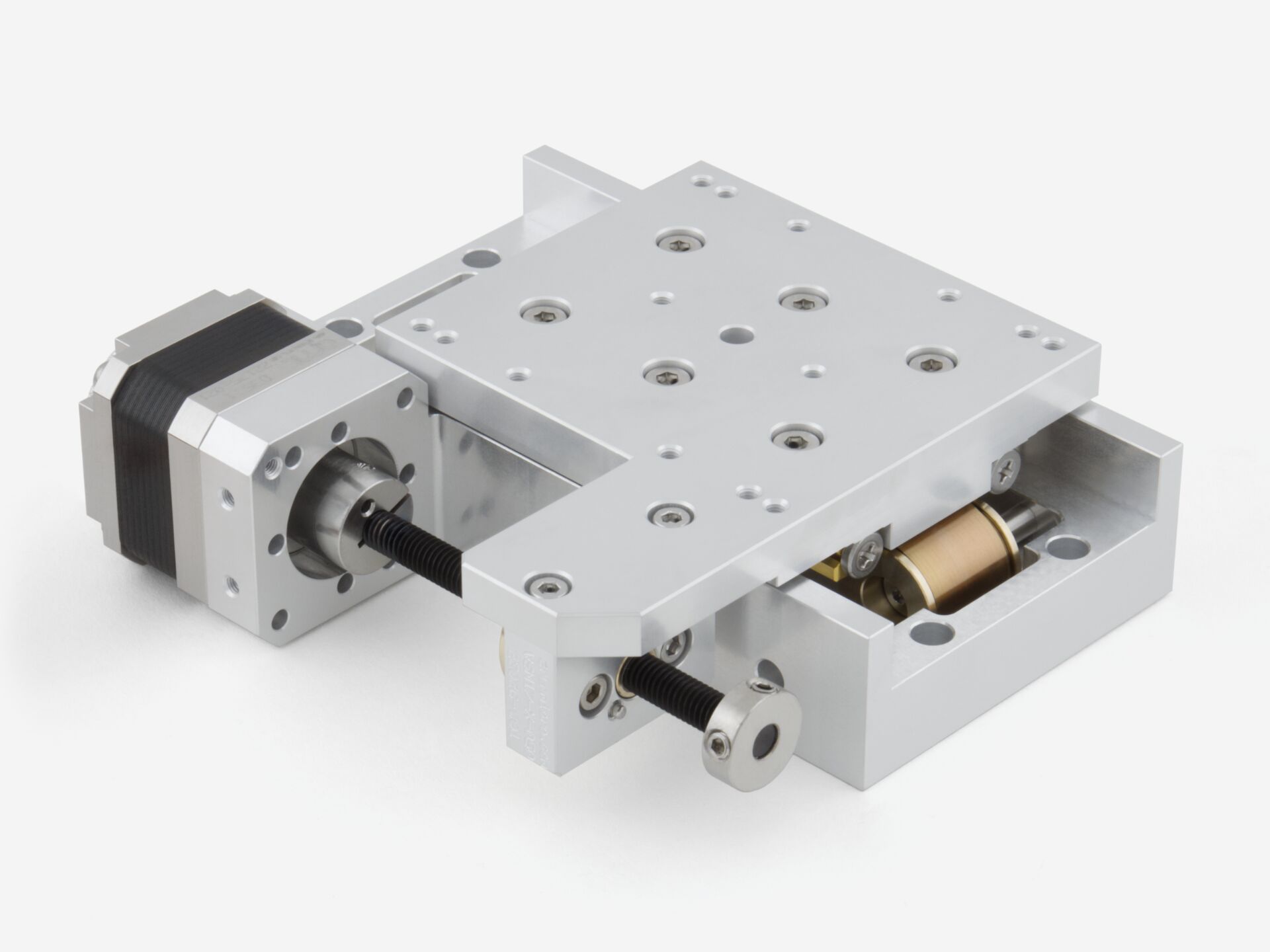

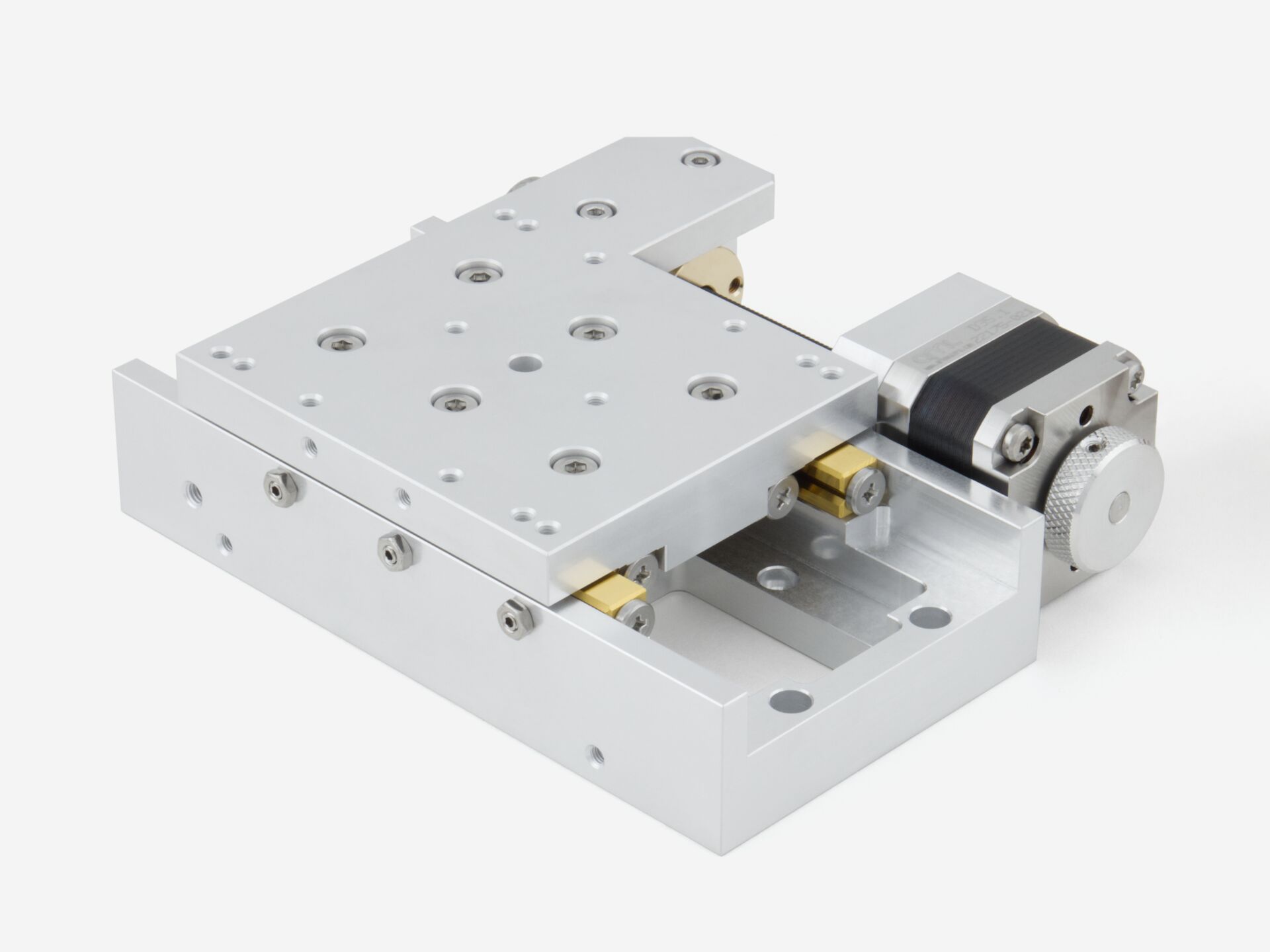

VSM17-X-050 50 mm Travel, 5 µm Resolution

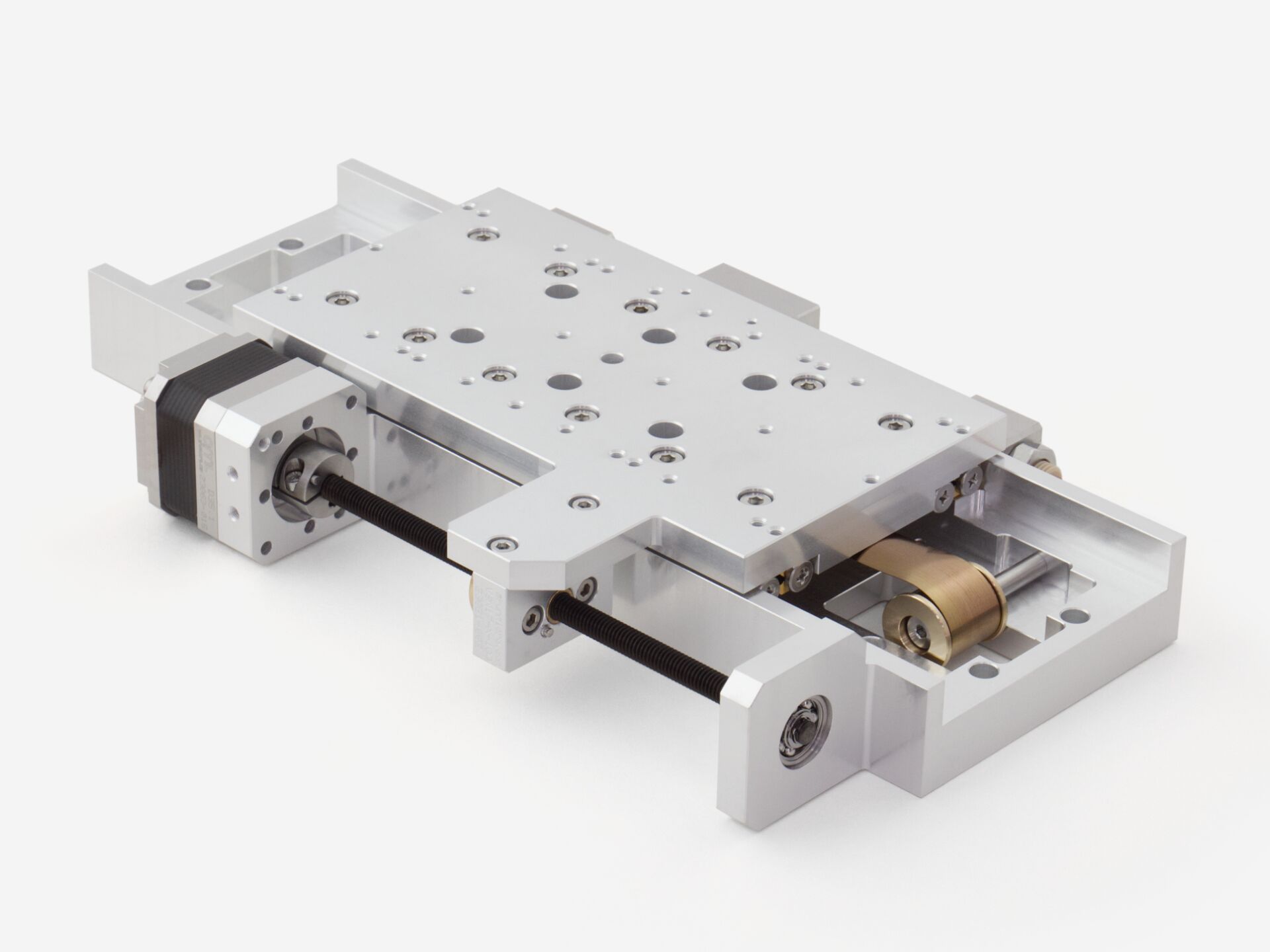

VSM17-X-100 100 mm Travel, 5 µm Resolution
VSM17-X-150 150 mm Travel, 5 µm Resolution
VSM17-X-200 200 mm Travel, 5 µm Resolution
