TRIBOTOUCH Hand Abrasion Simulation

Tribotouch

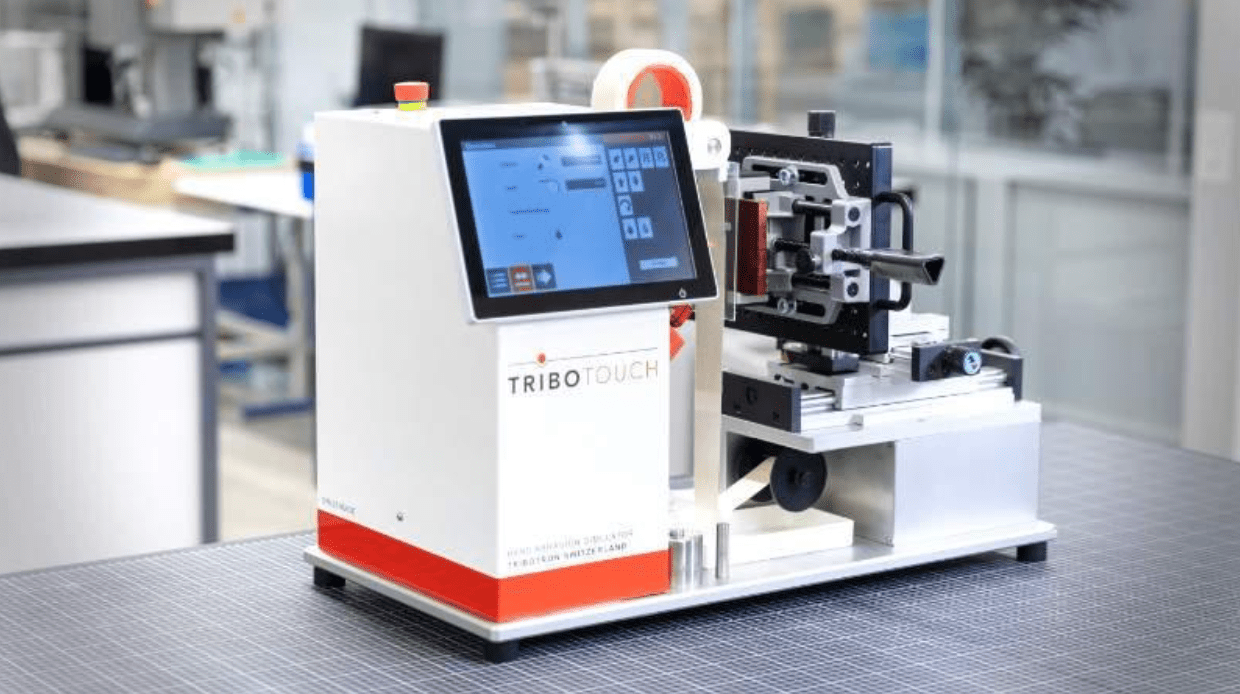

The hand abrasion tester Tribotouch reproduces the complex chemical and mechanical abrasion caused by the human hand on finished surfaces, printing, and labels. Quality and functionality of finished parts or lab samples are determined by the Tribotouch according to international standards.

The Tribotouch uses a “true” high dynamic linear motor with precise motion control for the movement of the piston (artificial finger) to accurately reproduce the real life abrasion caused by the human hand. State-of-the-art technology in combination with user-oriented design guarantee the highest reproducibility combined with high efficiency.

Tribotouch
Buyers’ Guide
Contact Ian

Features

Movement of the artificial finger

The Tribotouch uses a “true” high dynamic linear motor with precise motion control for the movement of the piston (artificial finger) to accurately reproduce the real life abrasion caused by the human hand.

Accurate and easy setup

Accurate X/Y/Z linear tables are used for the positioning of the test samples. The point of contact is clearly indicated by a laser beam.

Intuitive user interface

The intuitively-designed menu navigation based on pictographs makes it easy to use even without consulting the user manual.

Express inspection slide/Sample changer

The Tribotouch provides fast inspection without removing the specimen.

Developer menu

In order to reproduce the widest variety of human activities and motion sequences, the developer menu allows free adjustment of the speed, distance, and pause parameters.

Specifications

  • Normal load — 1, 5, 10N (up to 30N available)
  • Piston Speed — 60mm/s (up to 2500mm/s available)
  • Friction path — 1 – 40mm
  • Number of cycles — 1 -100 million
  • Fluid feed — cyclic
  • Fabric feed — cyclic
  • Temperature — -40°C to +85°C *
  • Power supply — 110V / 230V
  • Weight — 95kg
  • Dimensions — 100cm x 46cm x 52cm (L x W x H)
