SkyScan 1275 Micro-CT | high speed imaging

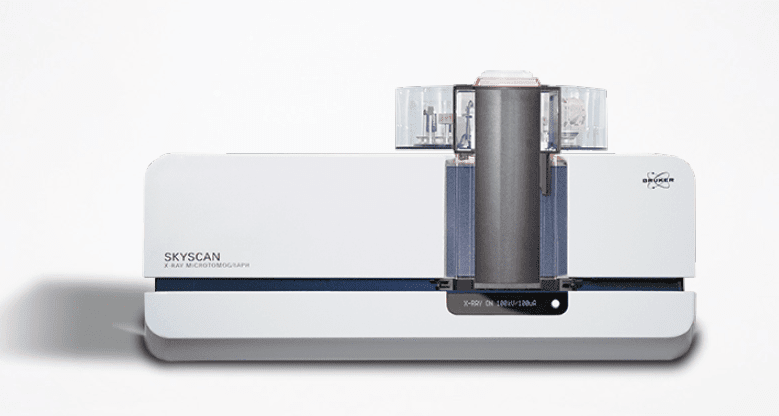

SkyScan 1275: Fast, Automated, Desktop X-Ray Micro-CT Scanner

The SkyScan1275 micro-CT is specially designed for 3D high speed imaging without compromising image quality.  Using new X-ray source technology and efficient flat-panel detectors, the Skyscan 1275 micro-CT reduces scan times down to a few minutes for routine sample scanning at the push of a button.

Fast micro-CT scanning with high quality results is crucial for scientific research and industrial applications such as quality control, production process monitoring, and large sample sets. The SkyScan1275 micro-CT provides a high level of automation; a simple push of the button on the front of the system starts an auto-sequence of a fast scan followed by reconstruction and volume rendering executed during scanning of the next sample.  Great for routine samples!

Fast realistic visualization of the microstructure through volume rendering enables fabulous imaging with the ability to virtually cut or fly around the inside of objects.

See more details and application examples in the product brochure.

Want more information? Call Ben at (610) 366-7103 or email: ben@microphotonics.com

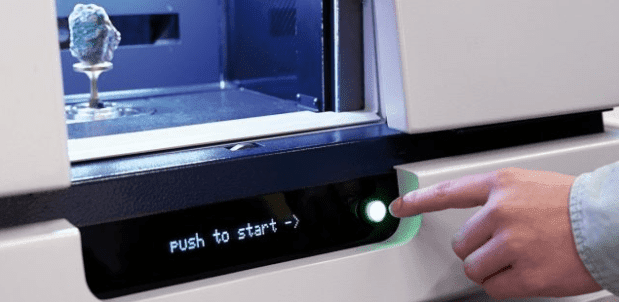

  • This highly automated micro-CT system allows pushbutton operation with a preselected sequence of actions including scanning, reconstruction and volume rendering.
  • A wide range of X-ray energies 20-100kV and small spot size in the X-ray source plus multiple filter options allow optimal scanning conditions to be selected for any particular application.
  • This scanner has a generous object size range up to 96mm in diameter and 100 mm in length and can be used for large samples including industrial parts and assemblies.
  • The distortion-free flat-panel active pixel 3Mp detector includes a fiber-optic plate to ensure long lifetime and the highest possible reconstruction quality and accuracy
  • Shortest scanning time is 80 seconds.
  • GPU-accelerated 3D reconstruction supports all image formats with speed-up 5-10 times compare to conventional CPU-based reconstruction.
  • The supplied software package includes programs for 2D/3D image analysis and realistic 3D visualization by surface / volume rendering of large format scanning results, data export and volume rendering on mobiles.
  • Optional stages for micropositioning and material testing allow scanning of a sample under compression, tension, heating or cooling.
  • The control software and all application programs run under Microsoft Windows 10.
  • At the end of a scan, the scanner can send you an e-mail with a direct link to scan results.
X-ray source 20-100 kV, 10 W, < 5 µm spot size @ 4 W
X-ray detector 3Mp (1944×1536 pixels) active pixel CMOS flat panel
Maximum object size 96 mm diameter, 120 mm height
Reconstruction GPU-accelerated FDK reconstruction as standard
Optional stages micro-positioning, cooling, heating, compression/tension (more)
Radiation safety <1 µSv/h at any point on the instrument surface

Download Brochure
