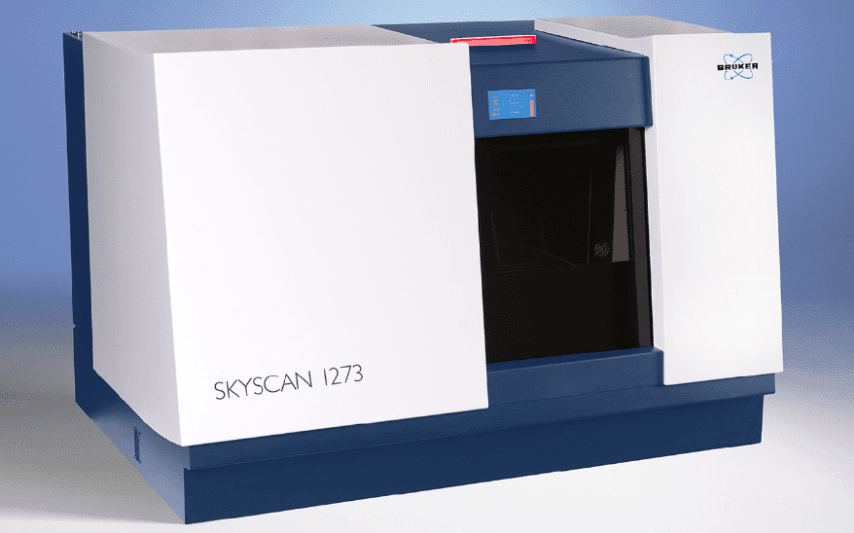

SkyScan 1273 | High-energy desktop micro-CT

SkyScan 1273 | High-Capacity 3D X-ray Microscopy

The SKYSCAN 1273 is Bruker’s latest bench-top 3D X-ray microscope based on micro-computed tomography (Micro-CT) technology. The system can accommodate samples up to 500 mm length, 300 mm diameter, and a maximum weight of 20 kg, which is a new standard for non-destructive testing (NDT) using a desktop instrument.

Best-in-class components turn the SkyScan 1273 into a real power pack. The high-energy X-ray source running at high power, combined with a large format flat-panel detector with ultimate sensitivity and speed, provides excellent image quality in just a few seconds.

The SkyScan 1273 benchtop 3D X-ray microscope requires minimum lab space, is easy to start running, and virtually maintenance-free. Consequently, the SKYSCAN 1273 micro-CT offers high system uptime with low cost of ownership.

High-energy micro-CT for large and dense objects

The new SkyScan 1273 includes a 130kV microfocus X-ray source with improved stability of the flux and focal spot position, a large format (6Mp) active pixel flat panel detector, and a precision object manipulator for large (up to 300mm in diameter, 500mm in length) and heavy (up to 20 kilograms) objects with an integrated micro-positioning stage. The scanning volume — up to 250mm in diameter and 250mm long — allows investigating a wide range of objects. The shortest scanning time of less than 15 seconds for an entire scan makes the system highly suitable for industrial applications and high throughput scientific research.  You get more samples and more data done more quickly.

Unique application possibilities

Helical (spiral) scanning, high spatial resolution, and precise calibration, opens  up unique possibilities for the SkyScan 1273 in 3D dimensional metrology on small and medium size objects, including 3D printed metal, plastic parts with closed compartments, medical devices, and more which can only be measured by micro-CT methods.

The SkyScan 1273 also provides the possibility of multi-scale imaging and exact modeling of geological materials in oil and gas exploration, from full-size drilled core down to micron-level resolution in small plugs, yet has enough sensitive to measure delicate samples like insects and other low dense material. The system is supplied with GPU-accelerated reconstruction for round and helical scanning geometries by patented (licensed) exact reconstruction algorithms providing highly accurate information for metrological measurements.

Bruker micro-CT software

Bruker’s comprehensive software package 3D.Suite®  for straightforward data collection, advanced image analysis, and powerful visualization makes the SKYSCAN 1273 an easy-to-use 3D X-ray microscope.  No dedicated engineer is needed.  It can serve as the core of a multi-use facility.

The full range of Bruker 3D.Suite® microCT software is supplied, including software for fast volumetric reconstruction, for 2D/ 3D quantitative analysis, and for realistic 3D visualization. The software also includes powerful volume rendering and easy creation of realistic movies with the possibility for virtual flight around and inside the reconstructed object’s microstructure. Reconstruction results can be sent to iPad, iPhone, or Android devices. Special software for mobile platforms performs volume rendering and virtual cut of objects with touch screen gesture controls.


Will micro-CT work for my application?  Request a FREE Micro-CT Evaluation Scan

We can help you determine if micro-CT is right for your research and guide you to the system best suited for your application. With over 50 years of collective experience, our micro-CT experts will select the best instrument for your sample, perform a FREE evaluation scan in our Micro Photonics micro-CT laboratory, and reconstruct the data for a thorough investigation of your sample.

Request: FREE EVALUATION SCAN to see how micro-CT works with your application.

You will receive a comprehensive test report, cross-sectional images of your sample, and a copy of our visualization software for enhanced viewing in both 2D and 3D . . . explore within!

READ MORE on how micro-CT works and can support your research.


Micro Photonics Inc. provides instruments, laboratory services, training, and support from micro-CT experts
to help research scientists meet their most complex laboratory demands.

More information: FREE BUYERS’ GUIDE

Request: FREE EVALUATION SCAN to see how micro-CT works with your application.

Contact: Benjamin Ache, Product Manager, Bruker Micro-CTs     P: 610-366-7103 ext 115.

Call Ben at (610) 366-7103 or email: ben@microphotonics.com

  • 40-130kV maintenance-free X-ray source for low cost of ownership
  • 8-position automatic filter changer for automatic energy selection
  • GPU-acceleration for fast 3D reconstructions
  • Offset scanning with automatic stitching of oversized images
  • Best image quality of planar structures thanks to helical scanning and exact reconstruction
  • Up to 4x faster scanning of objects with high aspect ratio thanks to HART Plus
X-ray source 40-130 kV, max. 39 W, < 5 µm spot size at 4 W
X-ray detector 6-megapixel (3072 x 1944) active pixel CMOS flat-panel detector
Maximum object size 300 mm diameter, 500 mm length, 20 kg
Optional stages Micro positioning, cooling, heating, compression/tension
Radiation safety <1 µSv/h at 10 cm from the instrument surface
